Built-In vs Freestanding Bar Fridge: Australian Guide
The difference between a built-in and a freestanding bar fridge is one line on the spec sheet: how much clear air the cabinet needs around it. Of the 359 fridges and freezers in our range that publish mounting data, 261 are freestanding — and 80% of those that list a clearance figure need 100–150mm of open space behind the cabinet. The other 98 are rated for enclosed installation: under-bench and built-in units that typically run on 50mm behind and 10mm each side, and integrated units designed to vanish into joinery entirely. Get this one number wrong and the fridge you built into the cabinetry spends its life short of air. This guide sorts the three formats with the clearance, cavity and height data from our own catalogue — the same live specs that sit on every product page.
The Three Formats at a Glance
| Format | Rear clearance (typical) | Where it lives | Our range |
|---|---|---|---|
| Freestanding | 100–150mm on most units | Open floor — garage, games room, beside the bar | 261 units — freestanding fridges |
| Under-bench / built-in | 50mm on most units (10mm sides and top) | Inside a bench or cabinetry cavity | 90 units — under bench fridges |
| Integrated | Concealed by the joinery design | Fully enclosed, flush with the cabinetry line | 8 units — integrated fridges |
1. The Clearance Spec Is the Tell — Not the Look
Two fridges can share the same bench-height silhouette and belong in different categories. This 115L unit stands 845mm tall — bench height — but it's rated freestanding, with 100mm of rear clearance required:
This 129L Rhino is 840mm tall and rated for under-bench installation on 50mm rear and 10mm side clearance:
Same silhouette, different engineering — and only the clearance figure on the product page tells you which one can live inside a cavity. That's why the ventilation clearances (rear, sides, top) sit as structured spec data on our product pages wherever the manufacturer states them. The rule in one line: never build in a fridge whose spec sheet says freestanding. Boxing in a cabinet that wants 100mm of rear air doesn't make it a built-in; it makes it a freestanding fridge that can't breathe.
2. Freestanding: 261 Units That Go Anywhere With Air Behind
Freestanding is the default format and the biggest part of the range — minis, retros, skinny uprights and glass-door cabinets. The deal is simple: the fridge needs open space around it (100–150mm behind and 20–40mm at the sides and top on most units), and in exchange you can put it anywhere that space exists and take it with you when you move house. Garage wall, games room corner, beside the outdoor bench: if the spot has open air, the freestanding range has the format. Sizing one into an alcove or corner? The dimensions guide walks every size band in the catalogue.
3. Under-Bench & Built-In: The 650–875mm Band
Every under-bench-rated unit that publishes a height stands between 650mm and 875mm tall — the band that slides beneath a standard bench line — and spans 70L to 399L, from single-door home bar fridges to triple-door commercial cabinets. Most run on 50mm rear and 10mm side clearance, which is what makes the cavity install possible. Note the label alone doesn't finish the job: even among built-in-rated uprights, required rear clearance runs 20mm to 150mm, so the product page's ventilation figures — not the category name — are what you build the cavity to. The built-in installation guide covers the build itself, and the under-bench installation guide covers the bench-specific details.
4. The Cavity Maths: Why the Published Cavity Is Bigger Than the Fridge
108 units in the catalogue publish a recommended cavity size, and it isn't the size of the fridge — it's the fridge plus its breathing room. Worked example from the spec data:

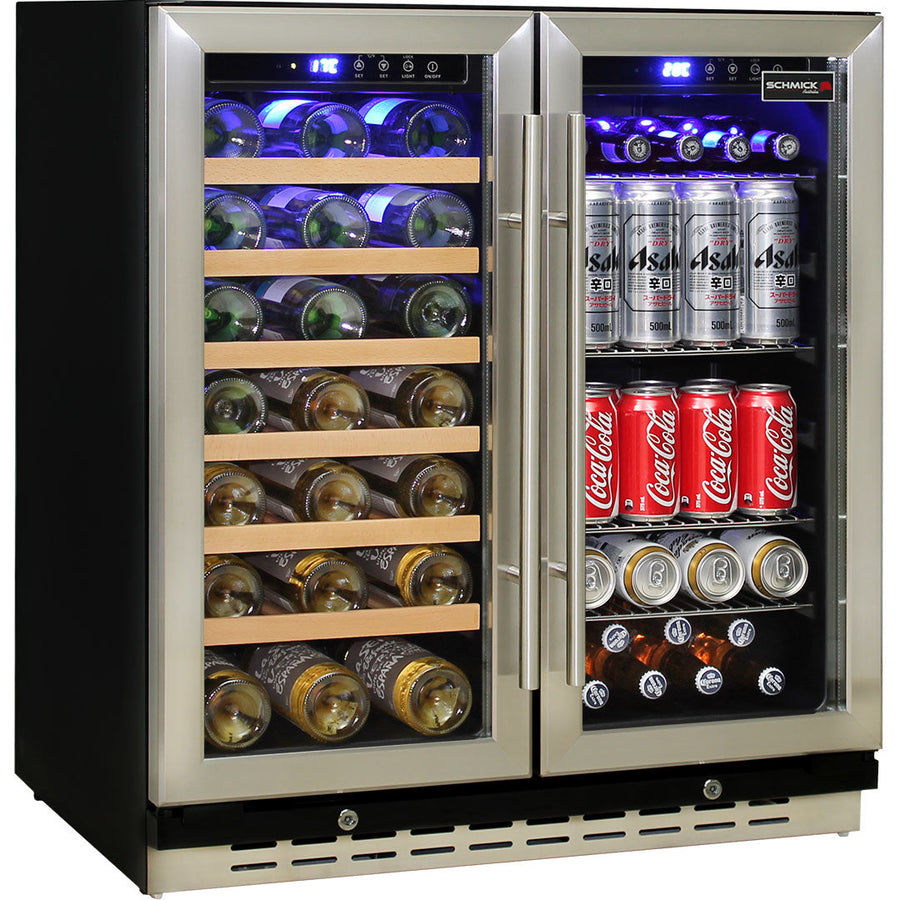

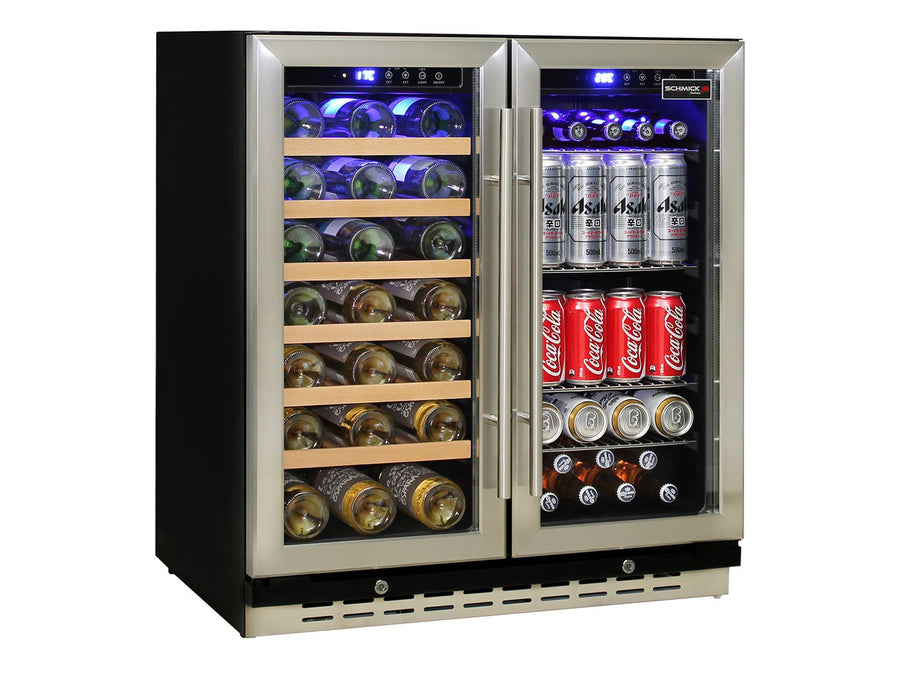

The JC165 cabinet measures 750mm wide × 570mm deep × 865mm tall, and needs 50mm rear and 10mm side and top clearance. Its published cavity is 770 × 620 × 875mm — exactly the cabinet plus the clearances (750 + 10 + 10 = 770 wide, 570 + 50 = 620 deep, 865 + 10 = 875 tall). Build the cavity to the cavity spec, not the cabinet dimensions, and the ventilation takes care of itself.
5. Integrated: The Fridge That Disappears
Integrated is the third format, not a synonym for built-in: 8 units, 820mm under-counter modules to 1770mm full-height columns, designed to be enclosed by the joinery so the fridge reads as another cabinet. Where a built-in unit slides into an open-fronted cavity wearing its own finished door, an integrated unit is specified as part of the cabinetry design itself — which is why, on all but one outdoor model, its airflow is engineered through the joinery rather than published as a simple rear-gap figure:
The full line-up is in the integrated fridges collection, and the integrated installation guide covers cavity, airflow and door-clearance planning. Needing frozen storage in the same joinery run? The bar freezers guide maps the freezer side of the same three formats.
Which Format Fits Your Install?
| Your situation | Buy |
|---|---|
| Open floor space; might rearrange or move house | Freestanding — largest choice of sizes and styles |
| Slot under an indoor or alfresco bench | Under-bench rated, 650–875mm tall, 70–399L |
| Open-fronted cavity in existing cabinetry | Built-in rated — build the cavity to the published cavity spec |
| Flush, concealed, part of the joinery design | Integrated — specify during the cabinetry design, not after |
| Frozen storage in the same run | See the bar freezers guide |
Every Built-In and Integrated Unit — Clearance & Cavity Specs
All 21 built-in- and integrated-rated units, with the two figures that decide the install: ventilation clearance (rear / sides / top, in mm) and published cavity (W × D × H, in mm). A dash means the manufacturer hasn't published that figure — we'd rather show a gap than guess. The 77 under-bench-rated units carry the same structured spec fields on their product pages.
Built-In vs Freestanding Questions, Answered
Can I build in a freestanding bar fridge?
No. Freestanding units in our range specify 100–150mm of open rear clearance on most models — an enclosed cavity takes that air away. If the spec sheet says freestanding, it stays freestanding; if you need a cavity install, buy a unit rated under-bench, built-in or integrated from the start.
How much clearance does a bar fridge actually need?
It's per-model data, not folklore: most freestanding units here list 100–150mm rear with 20–40mm sides and top, while under-bench and built-in rated units typically need just 50mm rear with 10mm sides and top. The exact figures are on every product page — build to those.
What's the difference between built-in and integrated?
A built-in unit slides into an open-fronted cavity and shows its own door. An integrated unit is enclosed by the cabinetry design itself so the fridge disappears into the joinery line — see the integrated installation guide before committing a design.
Will an under-bench fridge fit under my bench?
The under-bench range runs 650–875mm tall, sized for standard bench lines — but the number to check is the published cavity height against your actual under-bench opening, because the cavity figure already includes the unit's top clearance.
