Schmick – MSF230 – Integrated Upright Built-In Freezer – 214 Litres

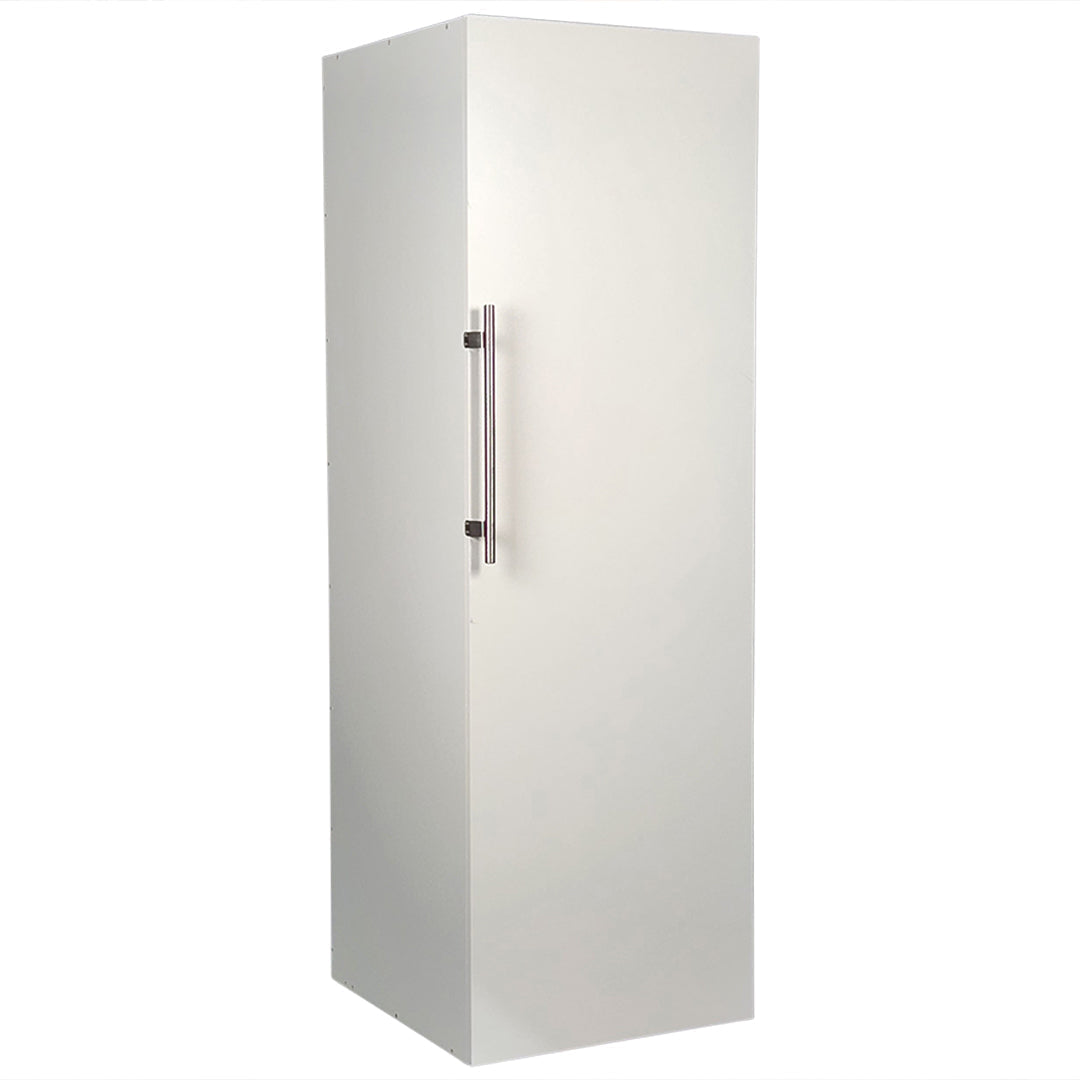

The Schmick MSF230 is a quiet, energy-efficient integrated upright freezer designed for seamless installation behind cabinetry. With a total capacity of 214 litres—comprising a 184L fridge and 57L freezer—this built-in unit offers ample storage space while maintaining a sleek, unobtrusive profile ideal for modern kitchens and entertaining areas.

Designed with a solid foamed door and a low-energy compressor, the MSF230 ensures excellent insulation and quiet operation at just 42 dB. Its reversible door hinge adds installation flexibility, and the unit requires a specially designed cabinet setup with adequate airflow for optimal performance.

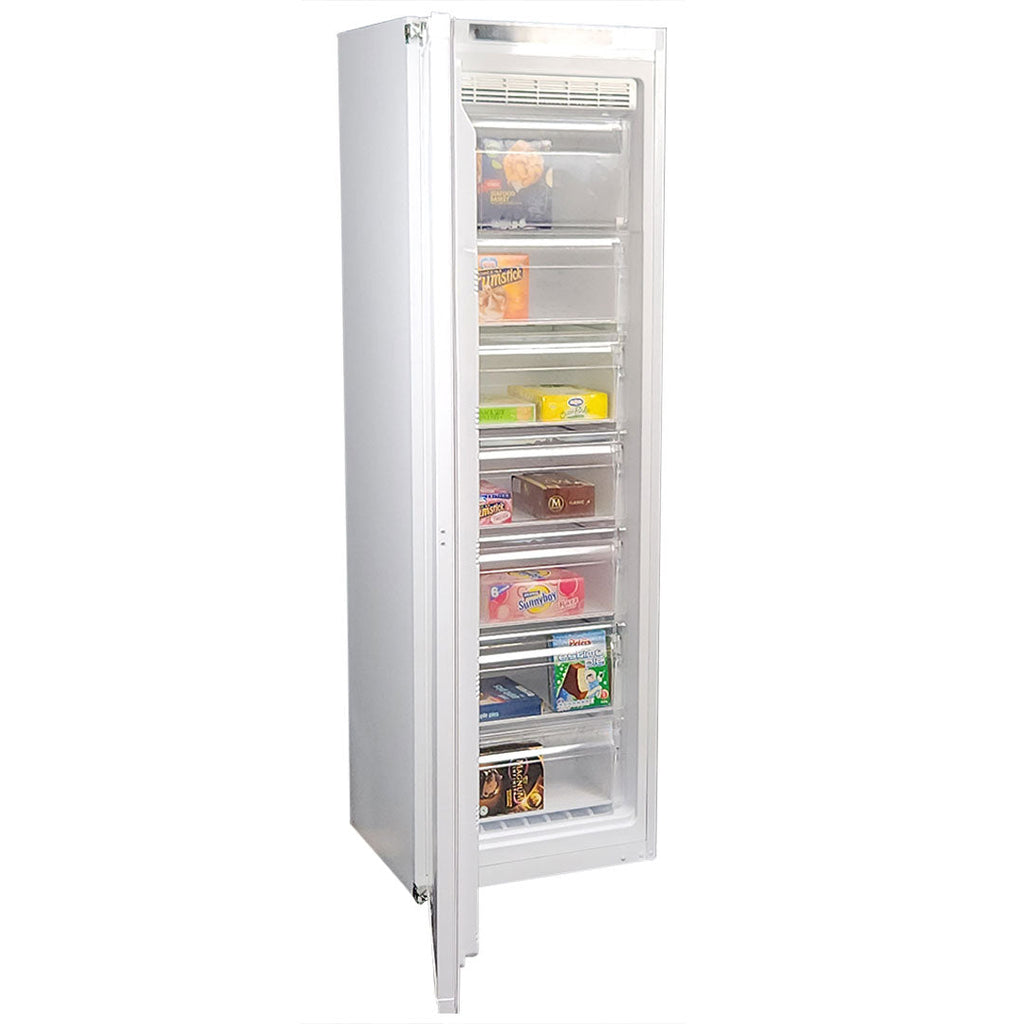

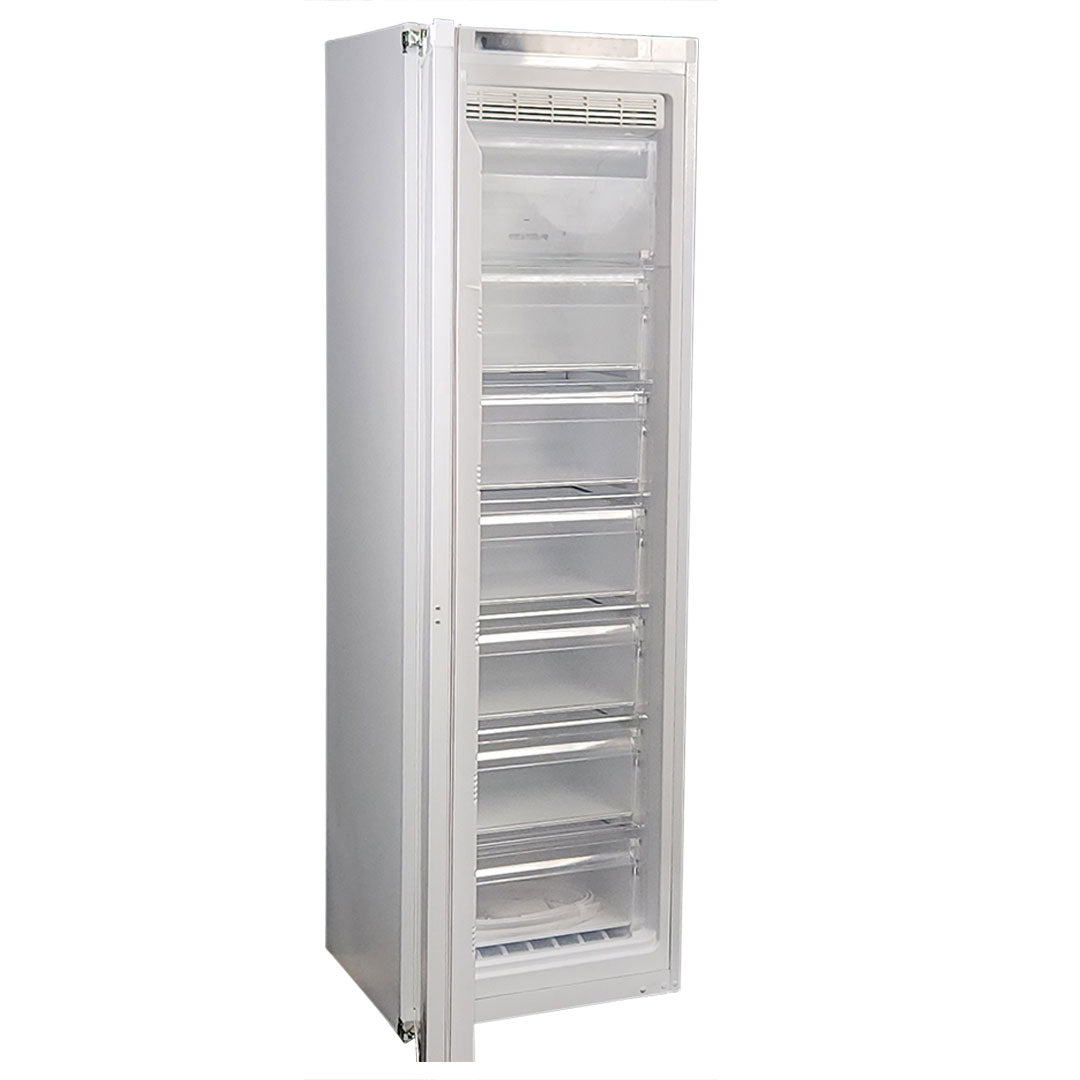

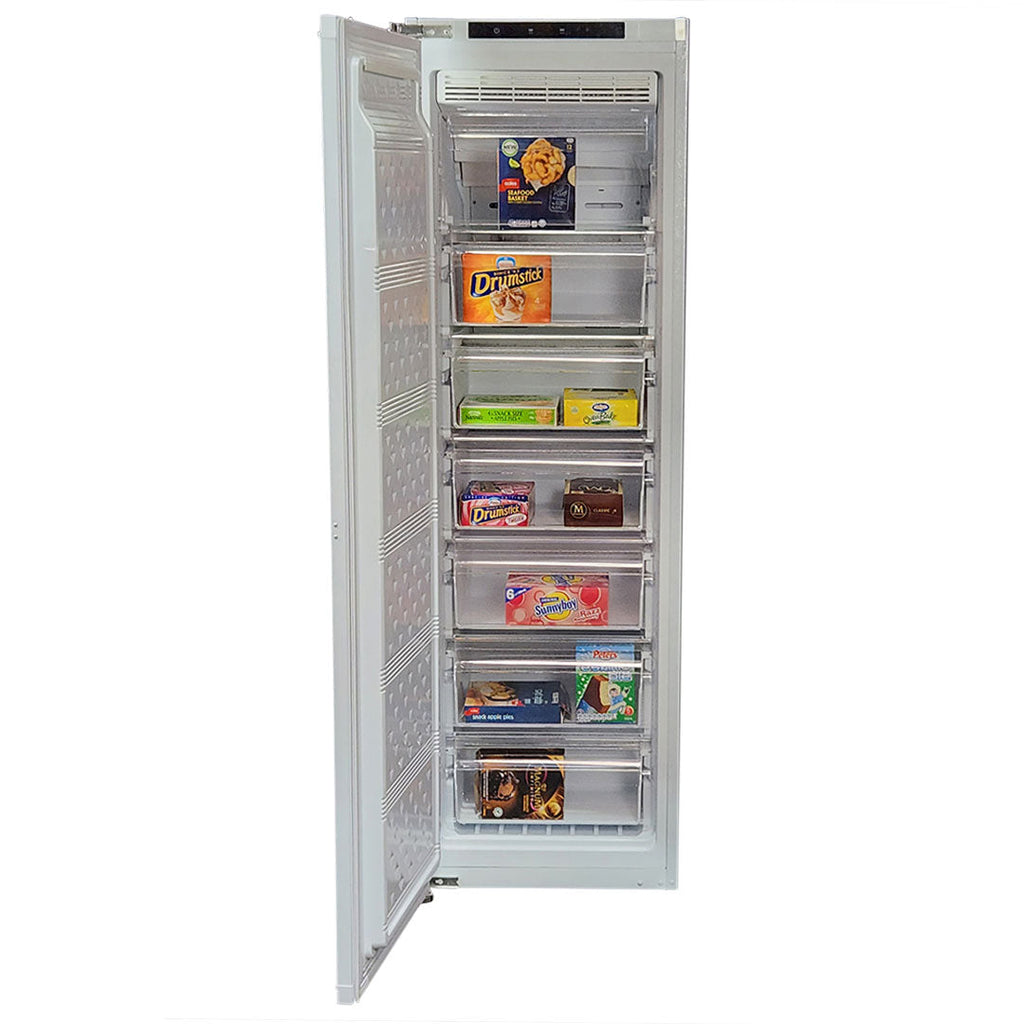

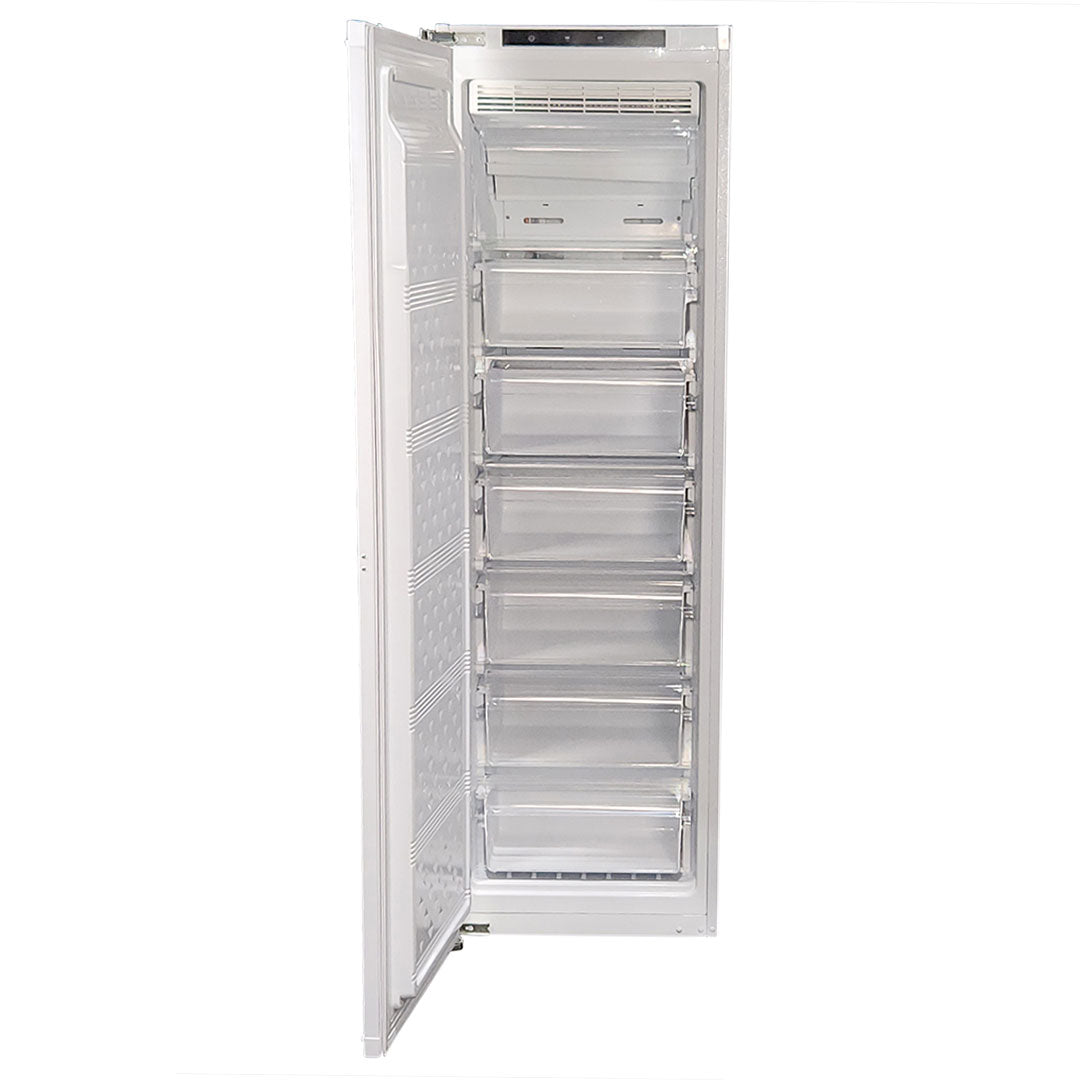

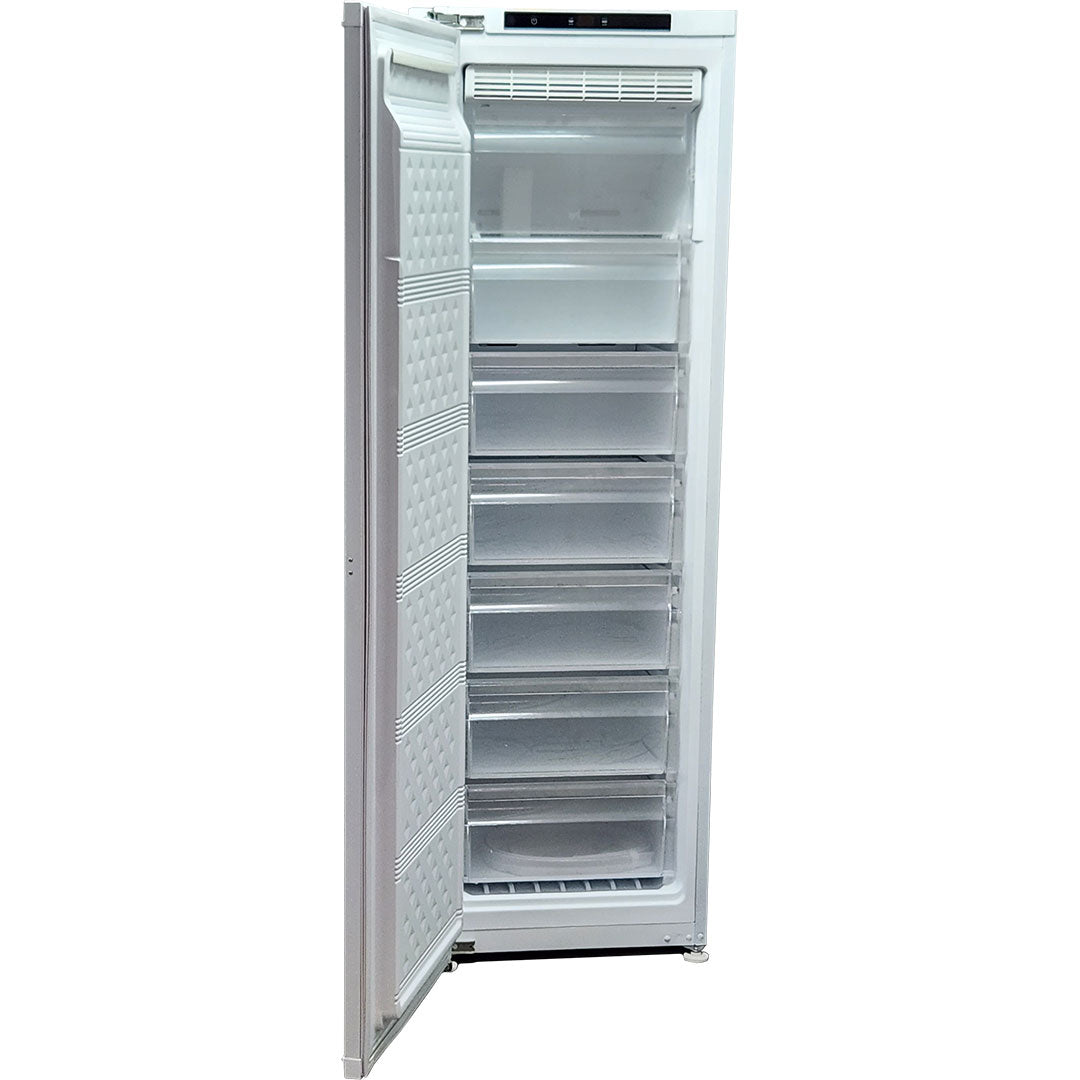

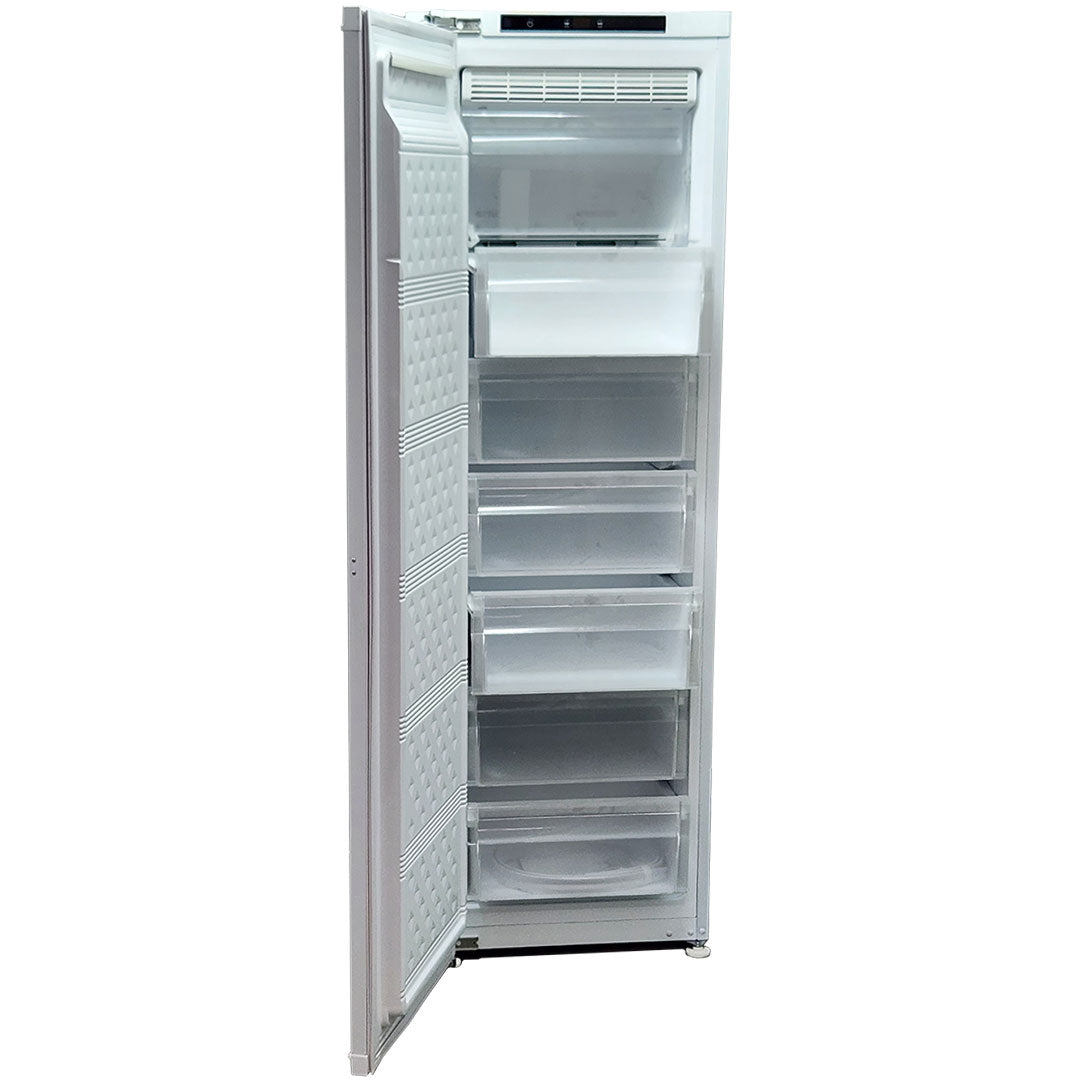

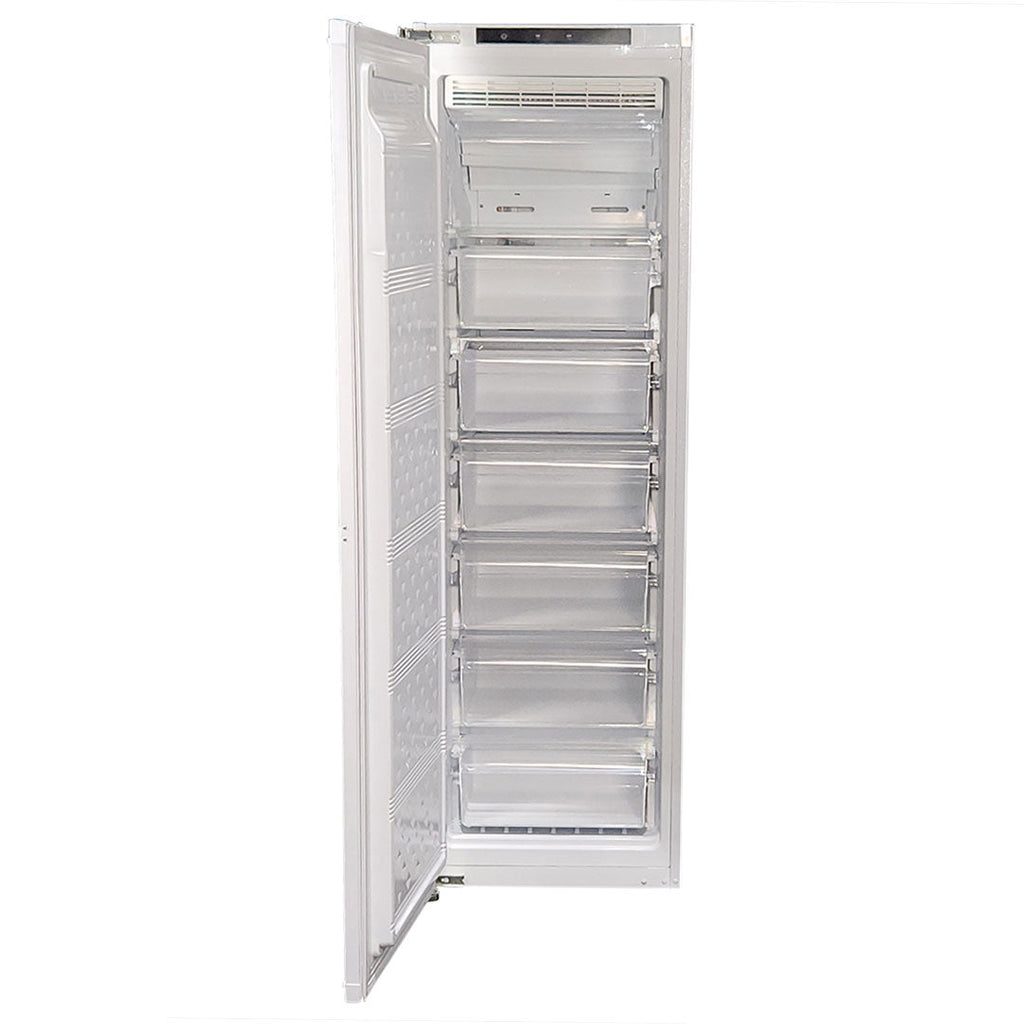

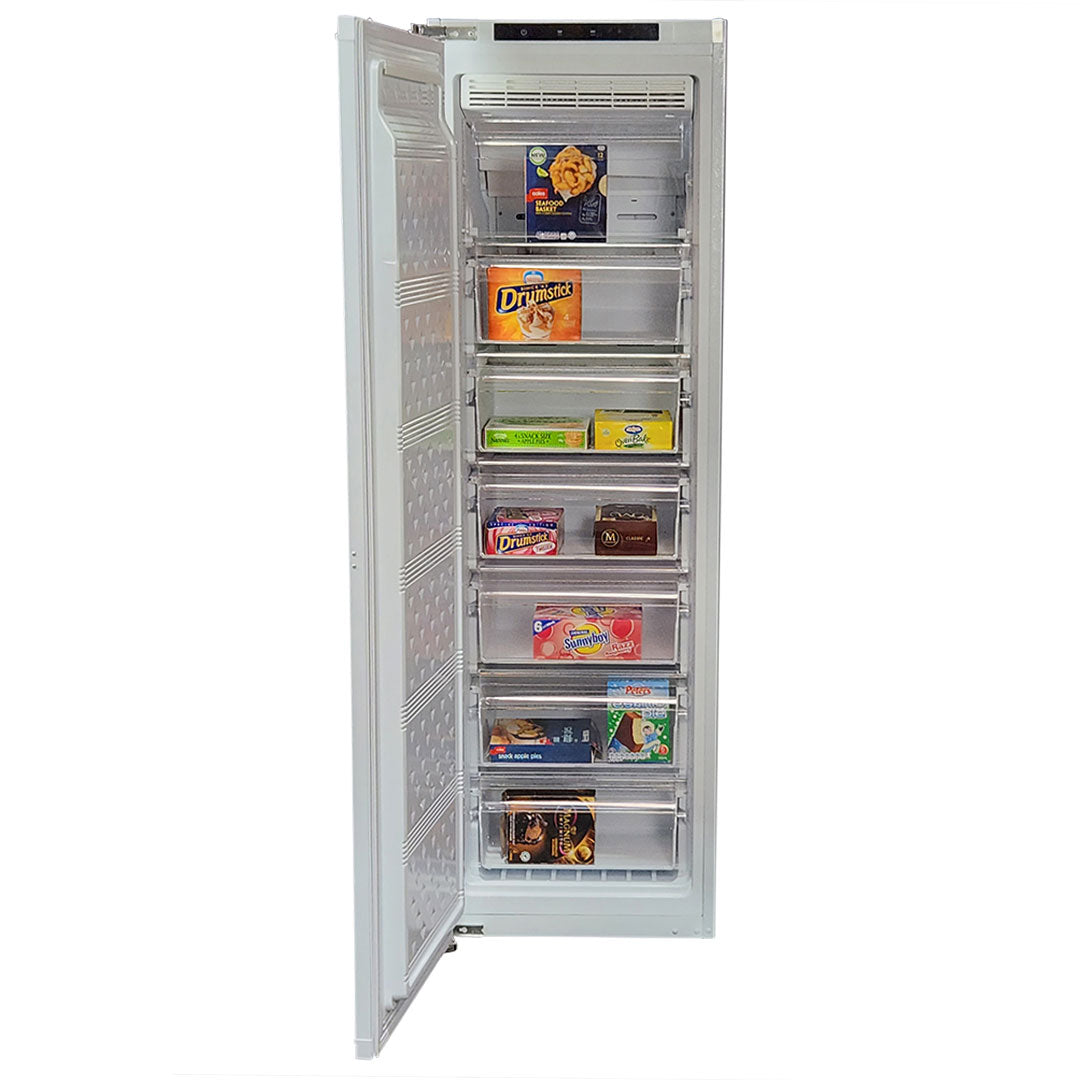

Inside, the fridge section includes four spacious shelves, a crisper, and multiple inner door shelves for organised storage. The freezer compartment features six large drawers plus a top flap cavity for efficient freezing and easy access to your frozen goods.

Built to the highest standards, Schmick’s flagship MSF230 unit is backed by certifications including GEMS 2022, RCM, and EMC (C-Tick), promising reliable performance and excellent energy efficiency with a 2-star rating.

Key Features:

• Integrated upright fridge and freezer combo designed for cabinetry installation with a flush, stylish finish

• Total capacity: 214 litres (Fridge: 184L / Freezer: 57L)

• Quiet running at 42 dB with low energy consumption and a 2-star energy rating

• Fridge includes 4 shelves, crisper, egg holder, and multiple inner door shelves

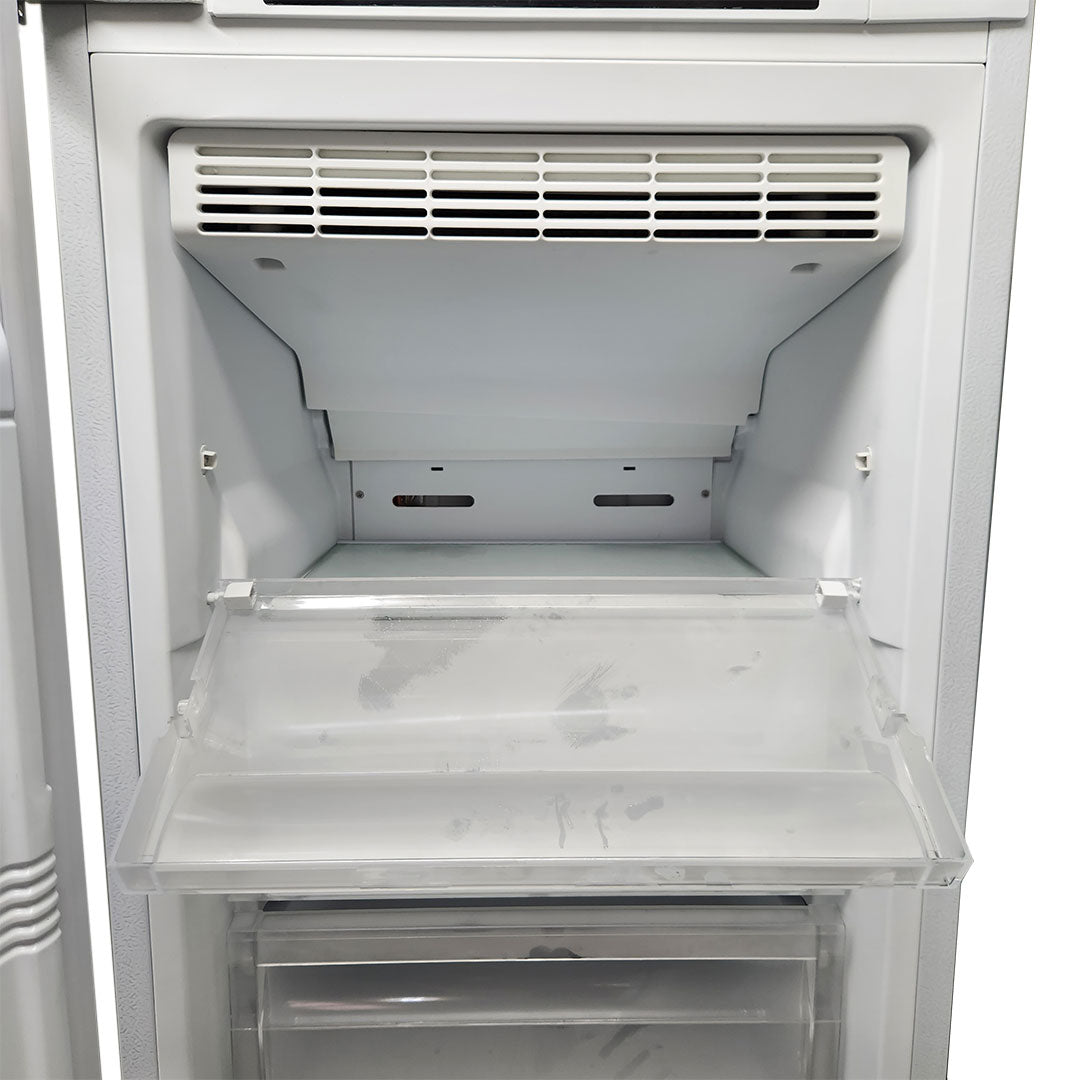

• Freezer features 6 large drawers (380mmW x 340mmD x 180mmH) plus a tiered top flap cavity for extra storage

• Solid foamed door for superior insulation and energy saving

• Reversible door hinge for flexible installation (left hinged by default)

• LED lighting and electronic temperature controller for easy monitoring and control

• Adjustable feet (4) for stable installation

• Requires special cabinetry ventilation with minimum 200cm² airflow and spacing for optimal cooling

Technical Specifications:

• Cooling capacity: Cools down to -22°C at ambient temperatures up to 32°C

• Power consumption: 0.5 kW/24hrs

• Estimated running cost: Approx. $46.79 per year (based on 25.64 cents/kWh)

• Noise level: 42 dB

• Weight: 59 kg

• Exterior dimensions (WxDxH): 540 x 550 x 1770 mm

• Internal dimensions (WxDxH): 430 x 300 x 1470 mm

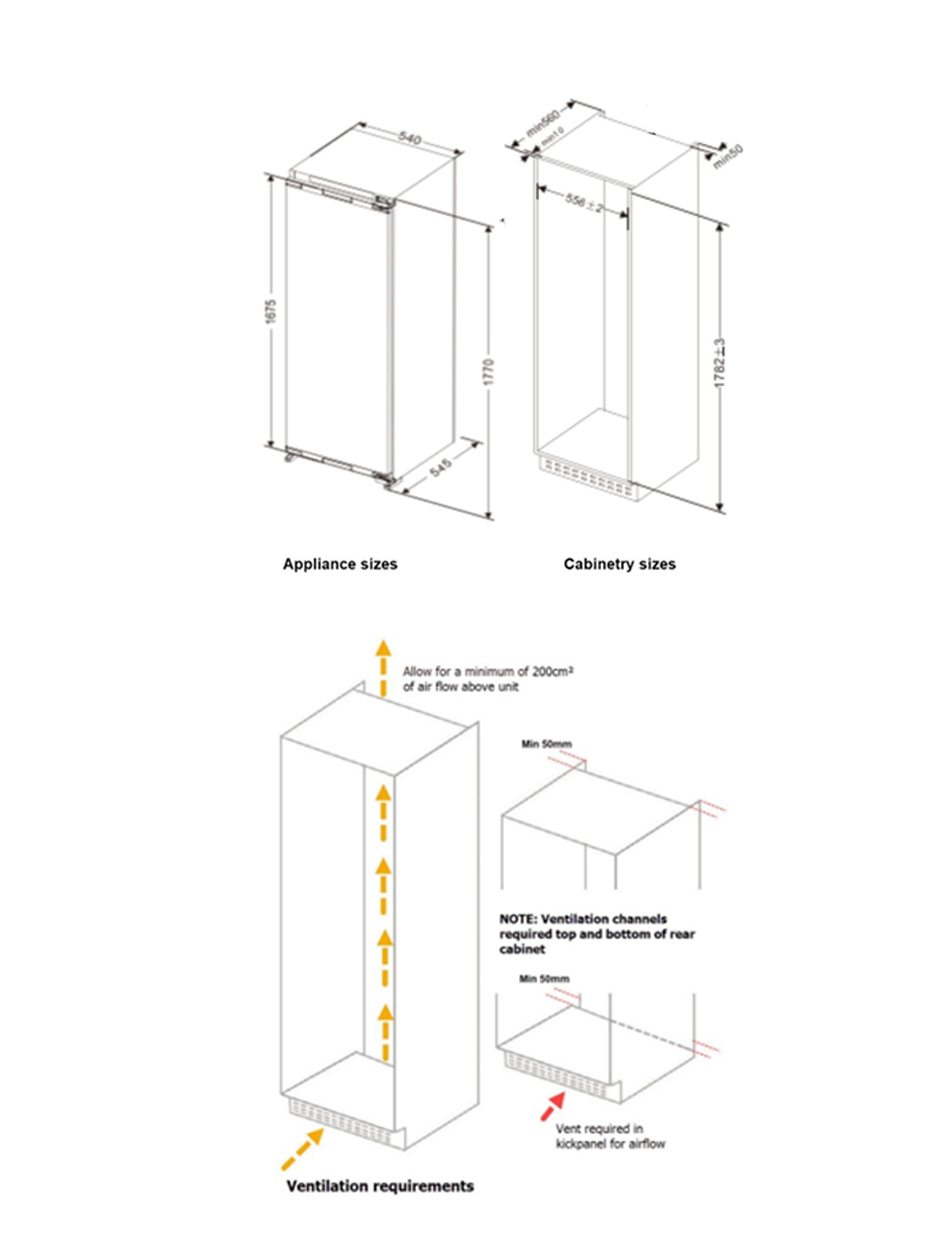

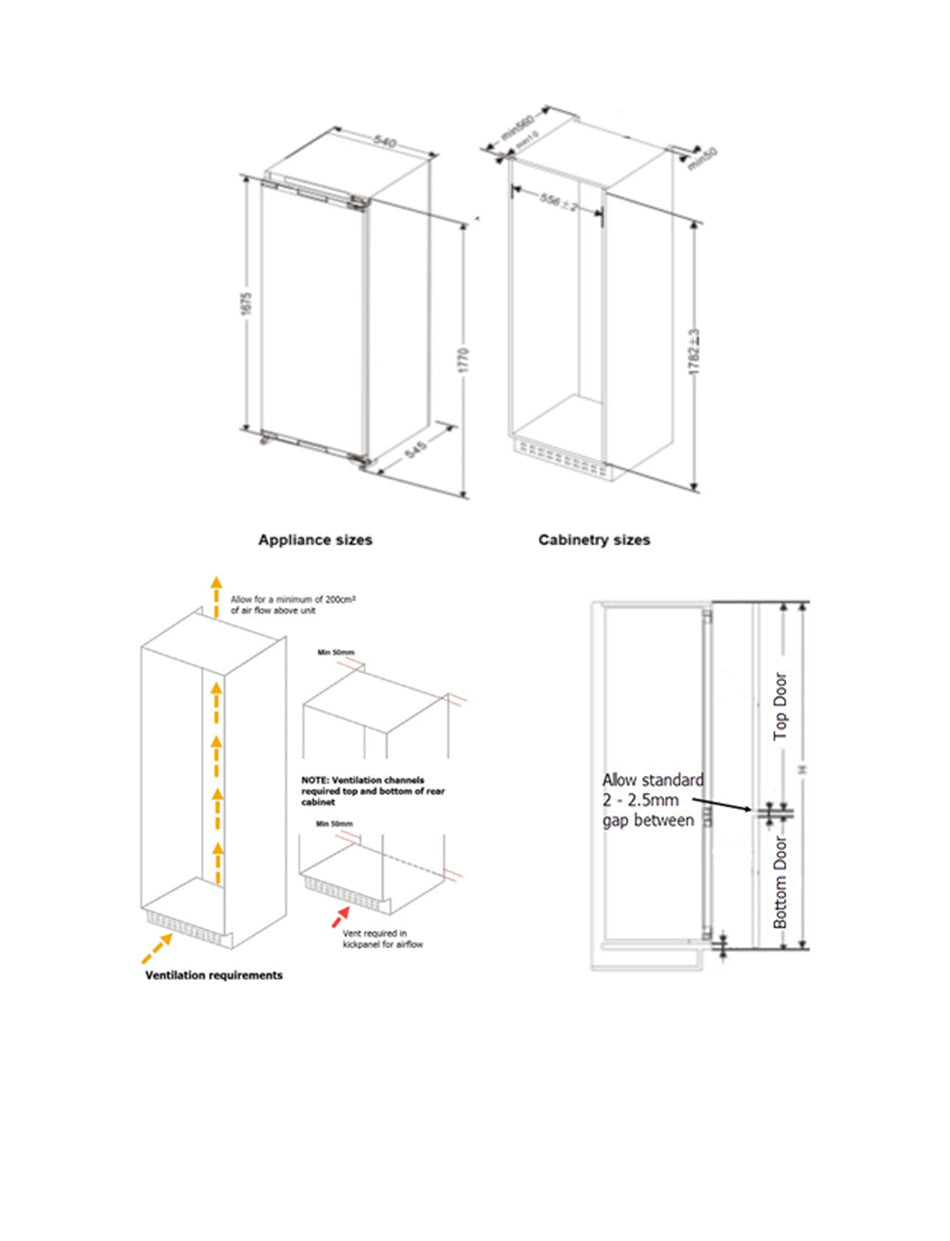

Installation Notes:

• Cabinet requires a vent installed in the kick panel beneath the fridge

• Airflow channels needed behind and above the appliance to maintain cooling efficiency

• Maintain 2-2.5mm spacing between top and bottom cabinetry doors

Certifications & Brand Info:

• Part of Schmick’s flagship range, recognized for premium quality and performance

• Certified GEMS 2022, RCM, EMC (C-Tick)

• Features low-energy compressor and electronic controller for efficient operation
