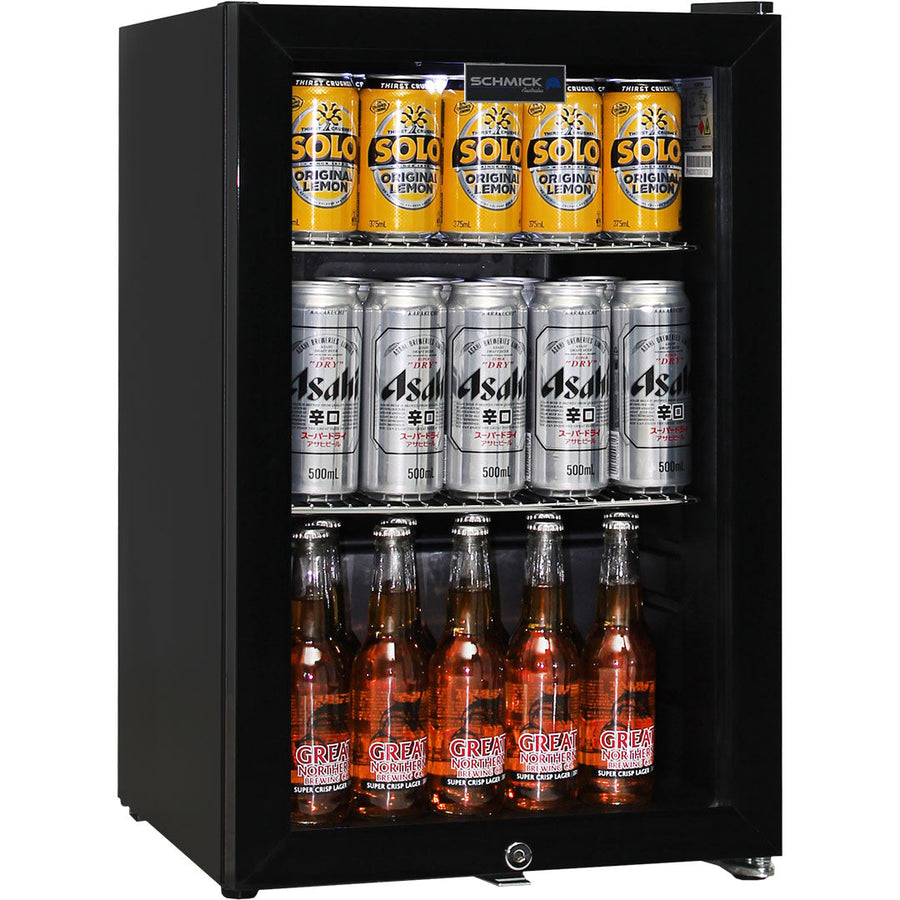

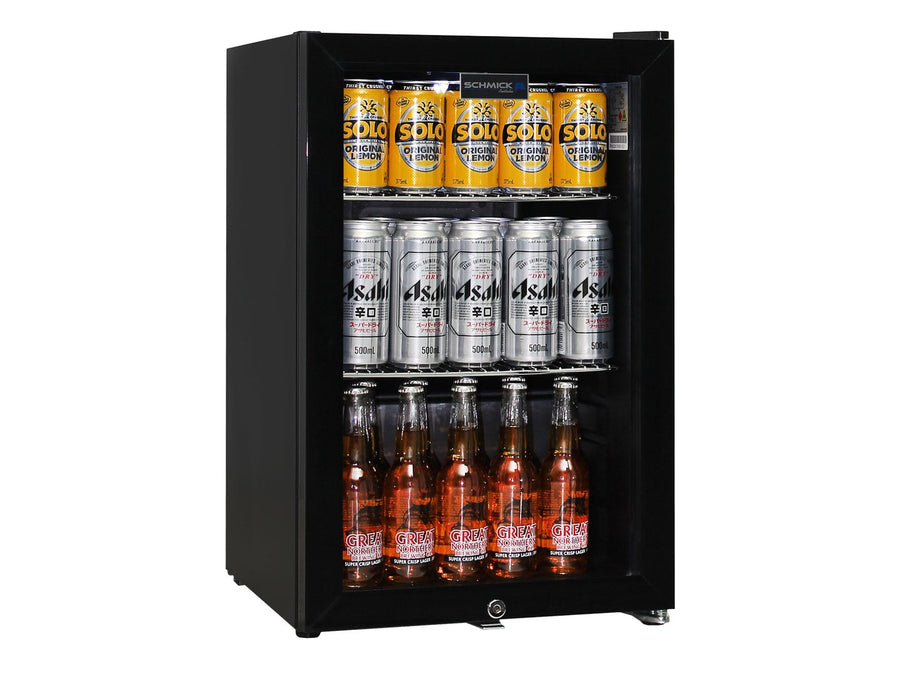

Schmick SC70 Bar Fridge Specs & Dimensions Guide
The Schmick HUS-SC70 is a 70-litre upright glass-door bar fridge built for alfresco and tropical conditions — think outdoor kitchens, patios, and humid Australian summers. The core of the family is the "SC70" model, and every SKU in the range carries the shared HUS- prefix, which is Schmick's naming convention for this alfresco-rated series. From there, the individual codes tell you what's different: -B for black, -SS for stainless steel, an -L for a left-hinged door, and -X for the iron door design variant.
Below we break down the exact specs, dimensions, and fitting details for every 70L model in the SC70 family, so you know precisely what you're buying before you commit.
Note: Schmick also sells a HUS-SC700W, a 737-litre upright commercial glass fridge. Despite the similar-looking SKU, it is a completely different product — not part of the 70L SC70 family — so don't confuse the two when ordering.
There's also a HUS-SC70-SS-COMBO, a 140L two-door alfresco fridge built by pairing two SC70 doors side by side — worth a look if you need more capacity than a single 70L unit but want to stick with the same door style and finish.
SC70 Family Specs Comparison
| SKU | Colour | Hinge | Location Rating | Capacity (L) | Width (mm) | Depth (mm) | Height (mm) | Noise (dB) | Power (kWh/24h) | Energy Rating | Running Cost ($/yr) | Warranty (yrs) | Reversible Door | Lockable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HUS-SC70-B | Black | Right | Indoor | 70 | 430 | 500 | 700 | 43 | 0.69 | 9.0 | 64.57 | 1 | Yes | Yes |
| HUS-SC70-B-X | Black (Iron Door design) | Right | Indoor & Alfresco | 70 | 430 | 500 | 700 | 43 | 0.69 | 9.0 | 64.57 | 1 | Yes | Yes |
| HUS-SC70-SS | Stainless Steel | Right | Indoor & Alfresco | 70 | 430 | 500 | 700 | 43 | 0.69 | 9.0 | 64.57 | 2 | No | Yes |
| HUS-SC70L-SS | Stainless Steel | Left | Indoor & Alfresco | 70 | 430 | 500 | 700 | 43 | 0.69 | 9.0 | 64.57 | 2 | No | Yes |
Every SKU in the family shares the same 430mm (W) x 500mm (D) x 700mm (H) external footprint, 70L capacity, 43dB noise level, 0.69 kWh/24h power draw, and a 9.0-star energy rating — so once you've picked your finish and hinge side, fitment doesn't change.
Detailed Model Breakdown
HUS-SC70-B: Black, Indoor Only
The HUS-SC70-B is the standard black finish in the range, with a right-hinged, reversible glass door — so you can flip the hinge to suit your space. It's rated for indoor use only, runs on just 0.69 kWh/24h for a running cost of around $64.57 a year, and carries a 1-year warranty. At 43dB, it's quiet enough for a home bar or entertaining room without being intrusive.
HUS-SC70-B-X: Black, Iron Door Design
The HUS-SC70-B-X is the black glass-front variant with the iron door design styling. Unlike the standard -B model, it carries an indoor and alfresco location rating, making it suitable for outdoor entertaining areas as well as inside. It shares the same right-hinged, reversible door, 0.69 kWh/24h power draw, and 1-year warranty as the -B model.
HUS-SC70-SS: Stainless Steel, Right Hinge
The HUS-SC70-SS is the stainless steel, right-hinged model, built with triple-glazed glass for outdoor and alfresco conditions. It's rated for both indoor and alfresco locations, backed by a 2-year warranty, and runs at the same 0.69 kWh/24h and 43dB as the rest of the family. Unlike the black models, the door on this SKU is fixed (not reversible) — the hinge side is locked in at manufacture, which is why Schmick offers both a left- and right-hinged stainless version.
HUS-SC70L-SS: Stainless Steel, Left Hinge
The HUS-SC70L-SS is identical to the HUS-SC70-SS in every spec except the door swings from the left instead of the right. Choose this one if your alfresco layout needs the door to open toward the left — otherwise the capacity, power draw, warranty, and indoor/alfresco rating are all the same as its right-hinged sibling.
Fitting & Ventilation Guide
Rear Ventilation Clearance
All four SC70 models require a minimum of 100mm rear ventilation clearance to allow the compressor to exhaust heat properly. This applies whether the fridge is freestanding against a wall or positioned in an alfresco nook — don't push it flush against a wall or cabinetry.
Recommended Cavity Dimensions
If you're building any SC70 model into cabinetry or an alcove, allow for a cavity of roughly 470mm (W) x 600mm (D) x 720mm (H) to give the unit enough room to sit and vent properly, even though these are freestanding units by design.
Indoor vs Alfresco Placement
The HUS-SC70-B is rated for indoor use only. The HUS-SC70-B-X, HUS-SC70-SS, and HUS-SC70L-SS all carry an indoor and alfresco rating, meaning they're built to handle outdoor entertaining areas as well as inside spaces — check which rating your chosen SKU carries before installing it outdoors.
Door Swing and Hinge Choice
The black models (HUS-SC70-B and HUS-SC70-B-X) have reversible doors, so the hinge can be swapped on site to suit either side. The stainless models are fixed at manufacture, which is why Schmick offers a right-hinged (HUS-SC70-SS) and a left-hinged (HUS-SC70L-SS) version — pick whichever matches your door swing requirements before ordering, since they can't be reversed after the fact.
Frequently Asked Questions
What are the dimensions of the Schmick SC70 bar fridge?
Every SC70 model measures 430mm wide, 500mm deep, and 700mm high externally, with a 70-litre capacity. This is consistent across all four SKUs in the range.
What's the difference between HUS-SC70-SS and HUS-SC70L-SS?
Both are stainless steel, 70L, indoor/alfresco-rated models with identical specs — the only difference is the door hinge. HUS-SC70-SS hinges on the right, while HUS-SC70L-SS hinges on the left. Neither is reversible, so choose based on which way you need the door to swing.
Can I install the SC70 outdoors or in an alfresco area?
The HUS-SC70-B-X, HUS-SC70-SS, and HUS-SC70L-SS all carry an indoor and alfresco location rating, making them suitable for outdoor entertaining areas. The standard HUS-SC70-B is rated for indoor use only.
How much ventilation clearance does the SC70 need?
All SC70 models need at least 100mm of clearance at the rear for ventilation. If building into cabinetry, allow for a cavity around 470mm (W) x 600mm (D) x 720mm (H).
How much does the SC70 cost to run?
Every SC70 model draws 0.69 kWh over 24 hours, carries a 9.0-star energy rating, and costs approximately $64.57 a year to run — identical across all four SKUs in the family.
