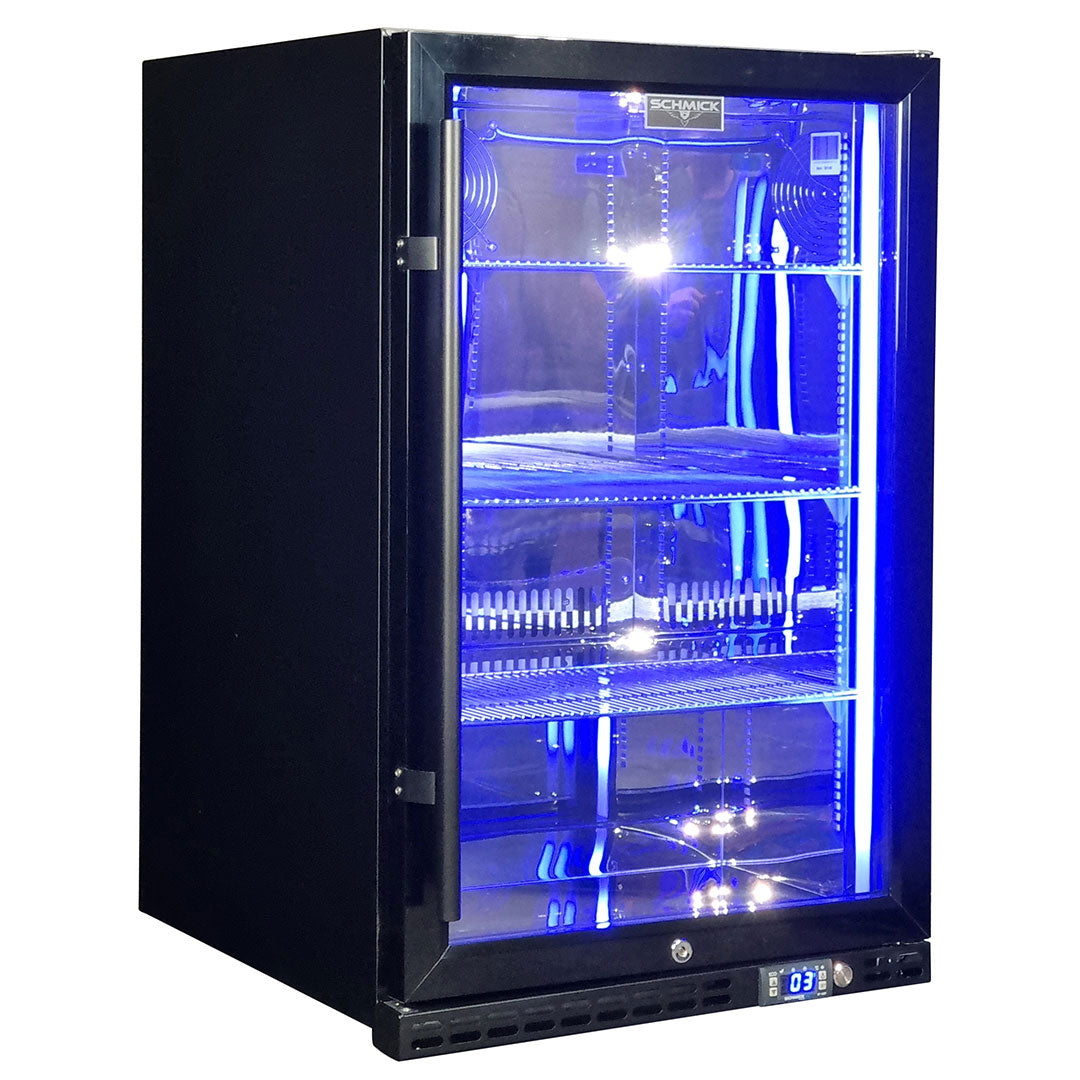

Schmick 164L Under Bench Glass Door Bar Fridge - SK146R-B-HD
- Size 875 H × 550 W × 586 D mm
- Capacity 164 L, holds 175 cans
- Heated glass keeps the door above dew point, preventing fogging and condensation in humid outdoor setups.
- Model
- SK146R-B-HD
- Capacity
- 164L
- Size
- 875 H × 550 W × 586 Dmm
- Location
- Indoor and outdoor
- Noise
- 43dB
- Running cost
- About$184/yr
Expert notes
- Heated glass keeps the door above dew point, preventing fogging and condensation in humid outdoor setups.
Overview

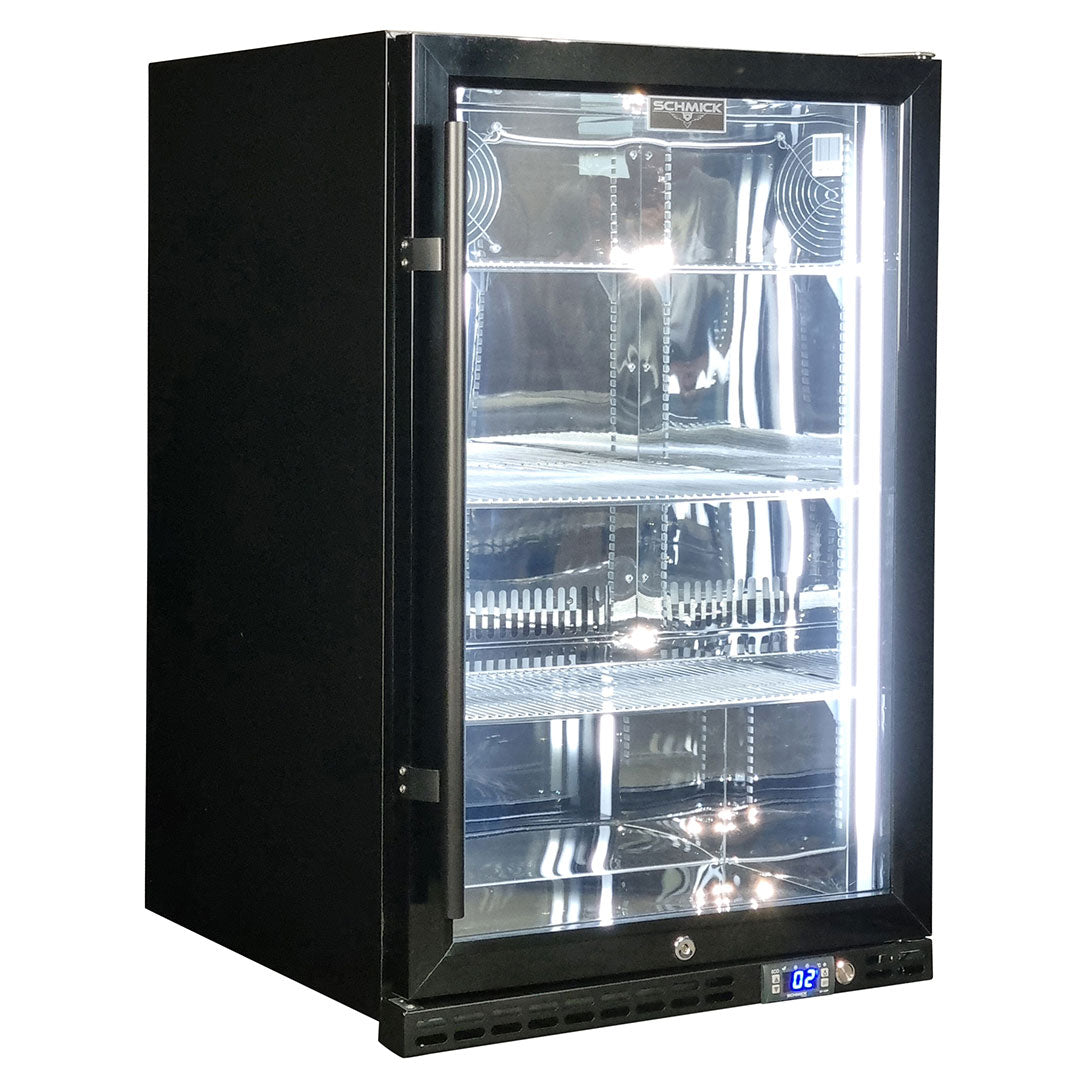

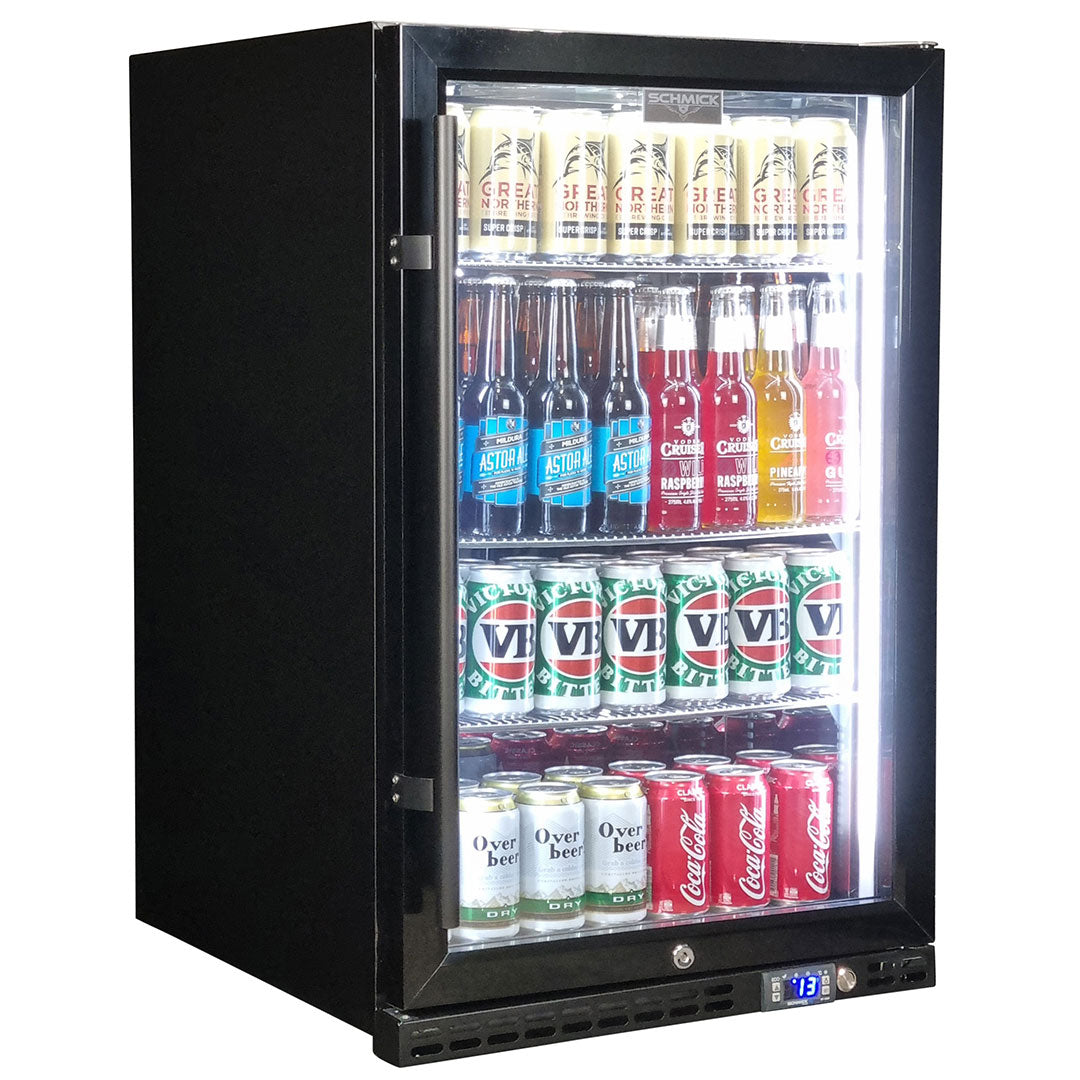

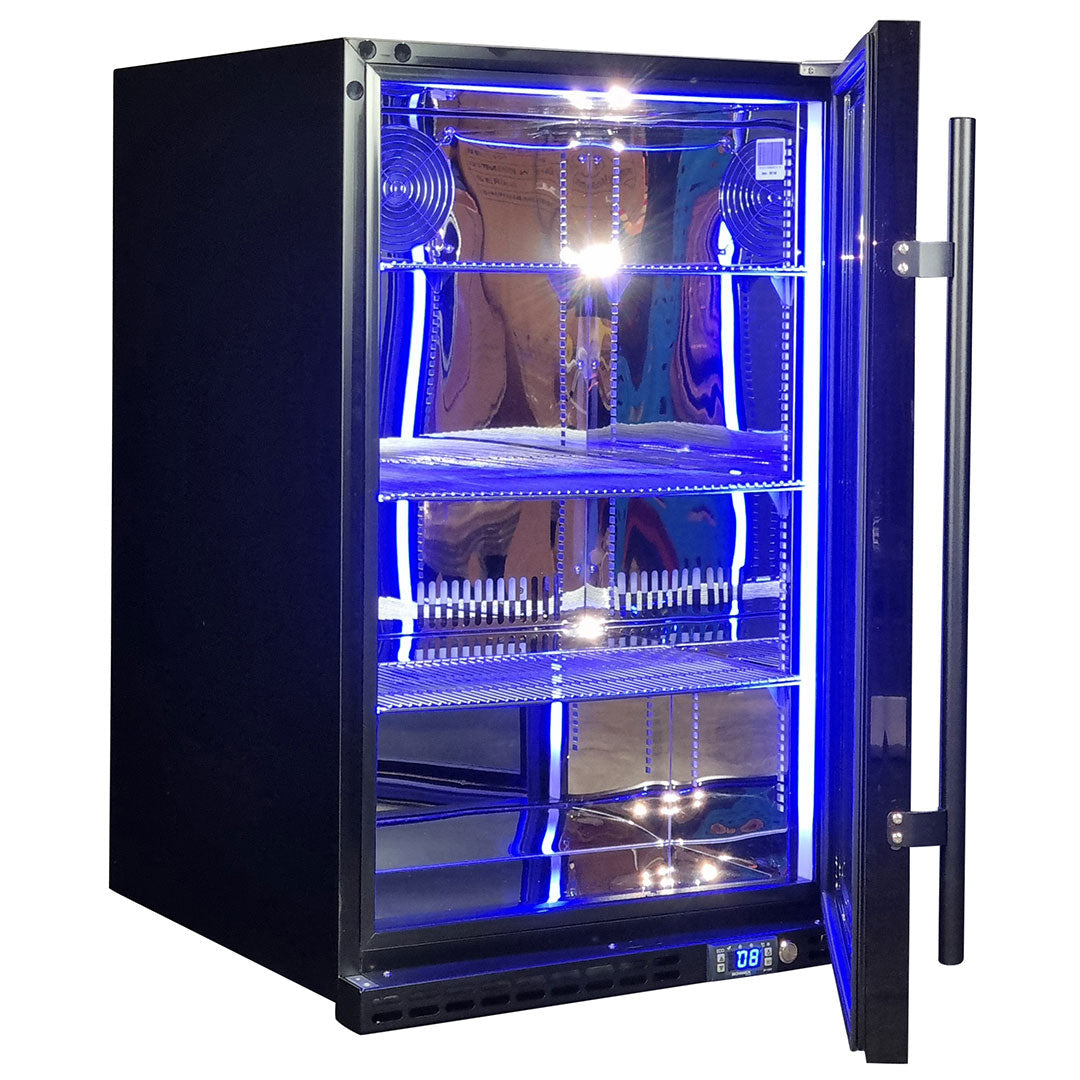

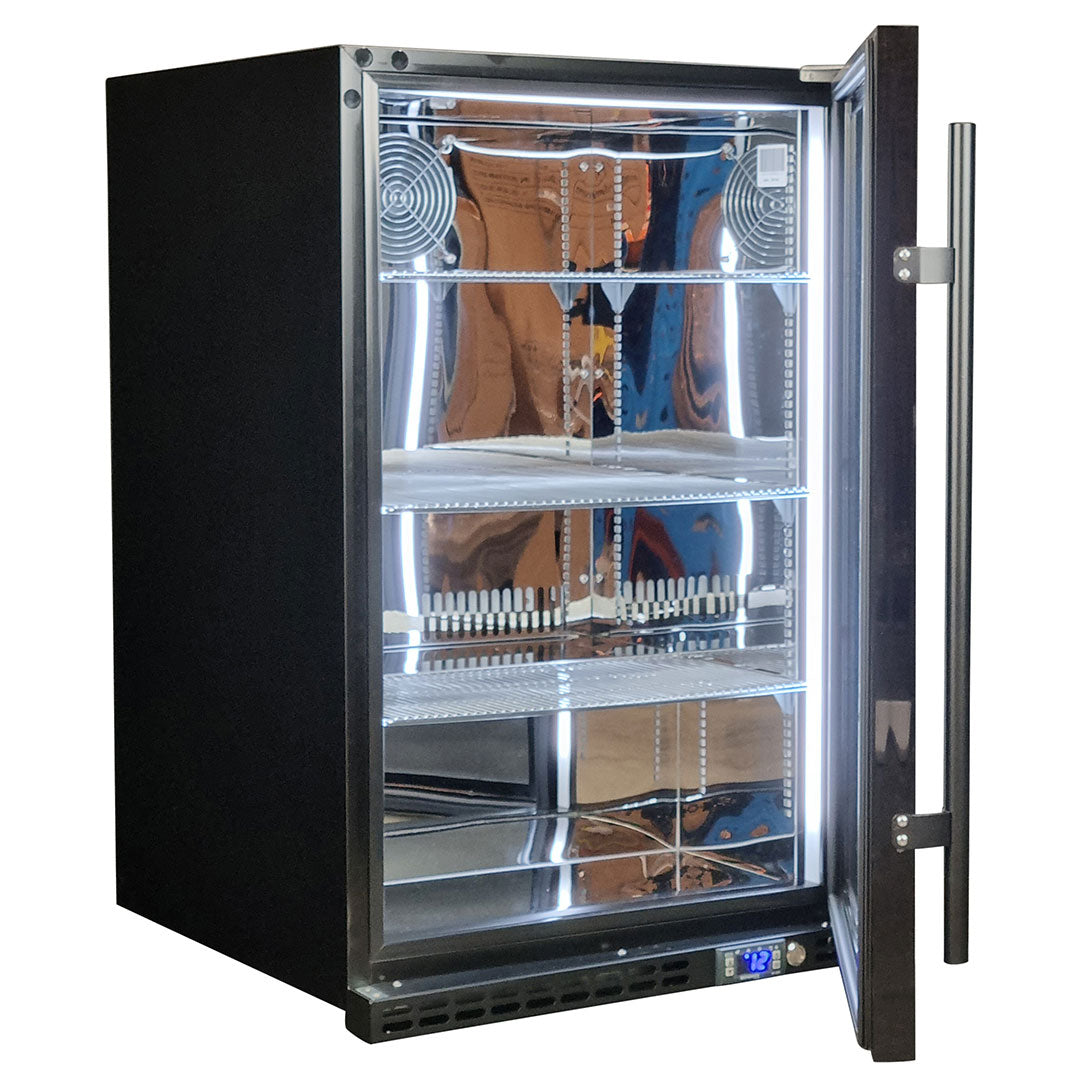

164L bar fridge chills up to 175 cans and maintains zero degrees even in 38°C heat, ensuring drinks are icy cold. Heated tempered glass keeps the door clear and secure with a built-in lock. Quiet 43dB operation and energy-saving features, including a Schmick ECO controller and LED lighting, cut running costs to just 1.97kWh per day. Adjustable heavy-duty shelves and polished 304 mirror stainless interior make organisation simple. Switchable white or blue LED lighting enhances visibility. Designed for indoor or outdoor use, with front venting for seamless integration into cabinetry. Tropical rated to 38°C—handles Australian summers without drop-off.
Specifications
Capacity
- Volume
- 164 L
- 375ml cans
- 175

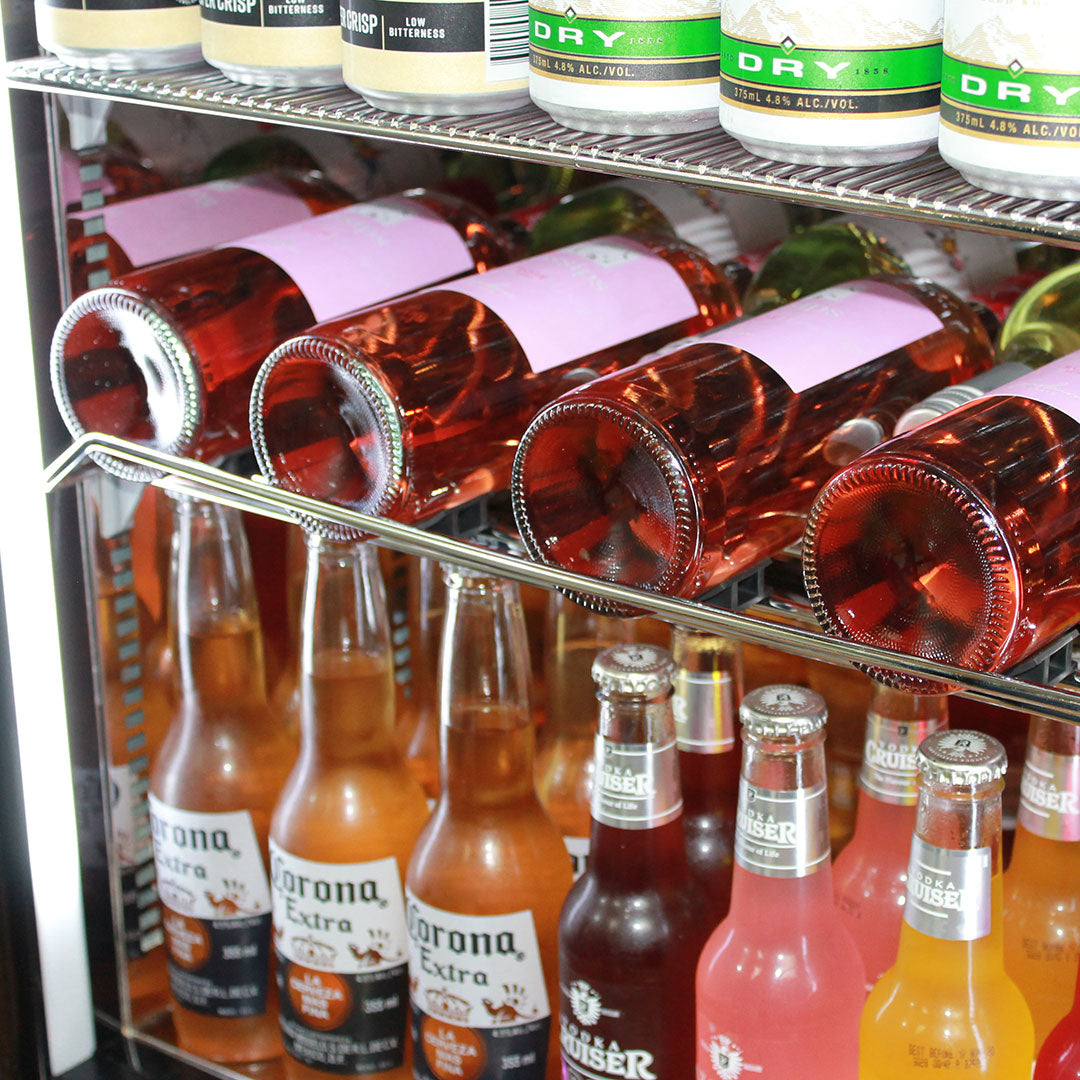

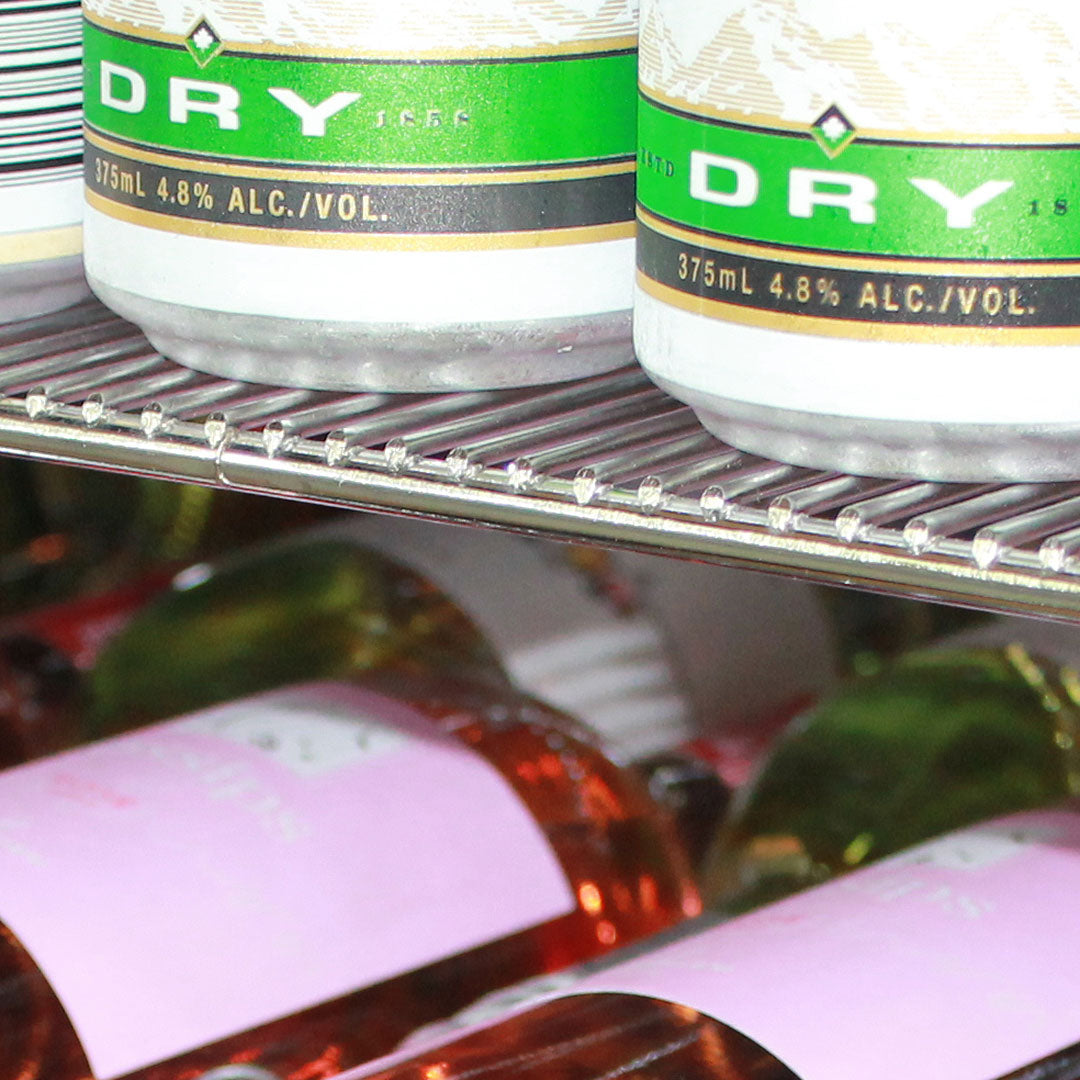

- Shelving
- 2 x Large Shelves 470mmW x 430mmD and 1 x 470mmW x 240mmD
Cooling and energy
- Noise
- 43 dB
- Power use
- 1.97 kWh / 24h
- Running cost
- About $184 a year
- Location
- Indoor / Outdoor
- Cooling
- Cools to zero (0°C) in 38°C+ no problems.
- Energy saving features
- Schmick ECO Controller, R600 100% ozone safe gas, LOW E glass, LED lighting, quiet running Schmick rear and inner fans, Energy saving compressor, Cyclopentane foaming
- Energy star rating
- 7
Build
- Doors
- 1
- Door type
- Heated glass
- Hinge
- Right
- Finish
- Black
- Exterior
- Black Powder Coated 304 Stainless Steel

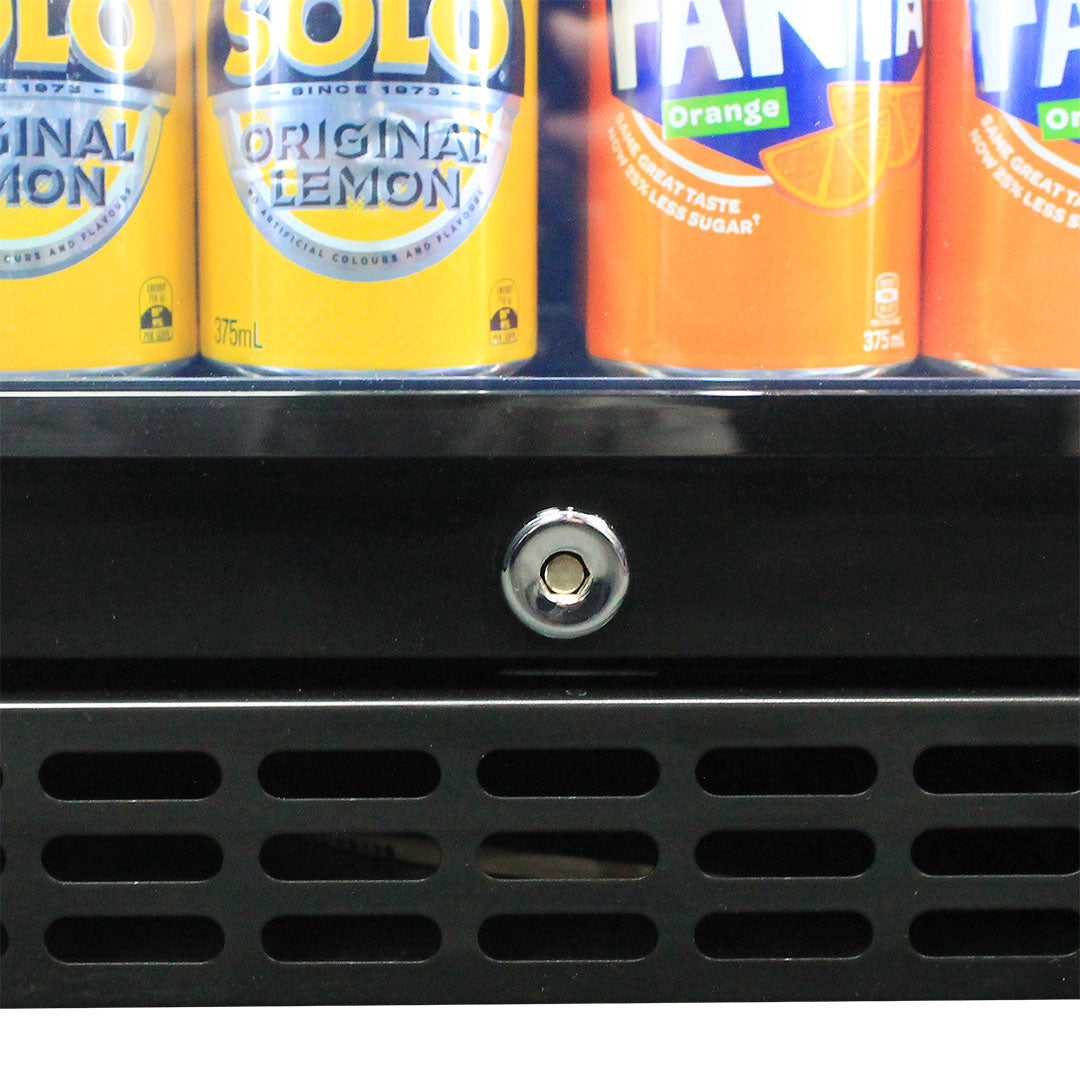

- Lockable
- Yes
- Glass door
- Heated glass - tempered
- Brand parts used
- quiet running Schmick rear and inner fans, Meanwell Transformer From Taiwan, High Quality Jiaxipera Chinese Compressor, Schmick ECO Controller
- Weight
- 43.0 kg
Dimensions and approvals
- External H x W x D
- 875 x 550 x 586 mm
- Internal H x W x D
- 750 x 475 x 440 mm
- Approvals
- SAA Electrical, EMC (C-Tick)
- Warranty
- 2 years parts and labour
- Model
- SK146R-B-HD
Size and fit
- Ventilation top
- 10 mm
- Ventilation each side
- 10 mm
- Ventilation rear
- 50 mm
Delivery and warranty
Express, 3-5 working days to most of Australia, 5-7 to WA, TAS and NT. Insured and tracked to your door.
VIC: free delivery on orders $1,000+
2 years parts and labour, included.
Chat with us or email hello@kingcave.com.au. Fitting out a venue? Ask for a quote.
Card, PayPal or bank transfer.
Downloads
Reviews
About Schmick
- Sizes
- 46 L minis to 405 L beer and wine pairs
- Climate
- Many models tropical rated
- Rated
- Indoors, or outdoors enclosed and under cover
- Quiet line
- Schmick OWL
- Controller
- Schmick ECO electronic
- Approvals
- MEPS, SAA electrical, EMC (C‑Tick)
Schmick is the range to choose when you want the best value: well built, reliable and quiet, from 46 litre retro minis to a 405 litre beer and wine pair.
The minis come from a long-standing manufacturing partner, and years of refinement have made them very well built and very stable. Schmick runs on its own ECO electronic controller with quiet running rear and inner fans, for reliable, low cost operation. Many glass door models have heated or triple glazed glass to stop condensation, and the Schmick OWL models run quieter than most others on the market.
Most Schmick fridges are rated for indoors or a covered alfresco area, enclosed and out of the rain.
How it compares
How the SK146R-B-HD compares
Three similar fridges, side by side. Add any fridge to start your own compare list.
Will it fit?
Measure the gap you have. Each fridge’s listed gap already includes the air it needs.
| Compared with this fridge | You’re viewing Schmick SK146R-B-HD$1,365 | Suggested Schmick SK156R-B-M$950 | Suggested Rhino GSP1H-SS$1,954 | Suggested 316 marine gradeRhino ENV1L-SS$2,609 |
|---|---|---|---|---|
| Price and running costs | ||||
| Price | $1,365 | $950 | $1,954 | $2,609 |
| Running cost a year | $184 | $174 | $96 | $218 |
| Power use a day | 2 kWh | 1.9 kWh | 1 kWh | 2.3 kWh |
| Energy rating | 7 stars | 9 stars | 10 stars | 8 stars |
| Will it fit | ||||
| Outside sizeWidth x depth x height | 550 x 586 x 875mm | 595 x 586 x 840mm | 600 x 500 x 865mm | 600 x 575 x 840mm |
| Gap it needsSize plus ventilation | 570 x 636 x 885mm | 615 x 636 x 850mm | 620 x 550 x 875mm | 620 x 625 x 850mm |
| VentilationRear / sides / top | 50 / 10 / 10mm | 50 / 10 / 10mm | 50 / 10 / 10mm | 50 / 10 / 10mm |
| Weight | 43kg | 44kg | 49kg | 64kg |
| Outdoors | ||||
| Cabinet steel | 304 stainless, black | 304 stainless, black | 304 stainless | 316 marine stainlessThe grade used on boats. Stands up to salt air and pool chlorine far better than 304.304 vs 316, explained |
| Cools in temps up to | 38°C | 38°C | 43°C | 47°C |
| Where it can go | Indoor and outdoor | Indoor and outdoor | Indoor and outdoor | Indoor and outdoor |
| Heated glassStops fogging in humid air | Yes | No | No | Yes |
| Low-E glass | Yes | Yes | Yes | Not listed |
| Weather rating | Not listed | Not listed | IP24 | IP24 |
| What it holds | ||||
| Zones | One | One | One | One |
| Coldest setting | 0°C | 0°C | 0°C | 0°C |
| Volume | 164L | 164L | 138L | 148L |
| Cans (375ml) | 175 | 144 | 140 | 140 |
| Shelves | 3 | 3 | 2 | 2 |
| Inside sizeWidth x depth x height | 475 x 440 x 750mm | 515 x 436 x 690mm | 520 x 360 x 740mm | 510 x 440 x 680mm |
| Build | ||||
| Doors | 1 | 1 | 1 | 1 |
| Hinge side | Right | Right | Right | Left |
| Lockable | Yes | Yes | Yes | Yes |
| Lighting | LED | LED | LED | LED |
| Noise | 43dB | 43dB | 46dB | 43dB |
| Warranty | 2 years | 2 years | 2 years | 2 years |
| Documents | ||||
| Brochure | Open PDF | Open PDF | Open PDF | Open PDF |
| Spec sheetSizes and cavity drawing | Not listed | Not listed | Not listed | Open PDF |
| User manual | Open PDF | Open PDF | Not listed | Open PDF |
| Buy | This fridge | View fridge | View fridge | View fridge |
Swipe to see them all
