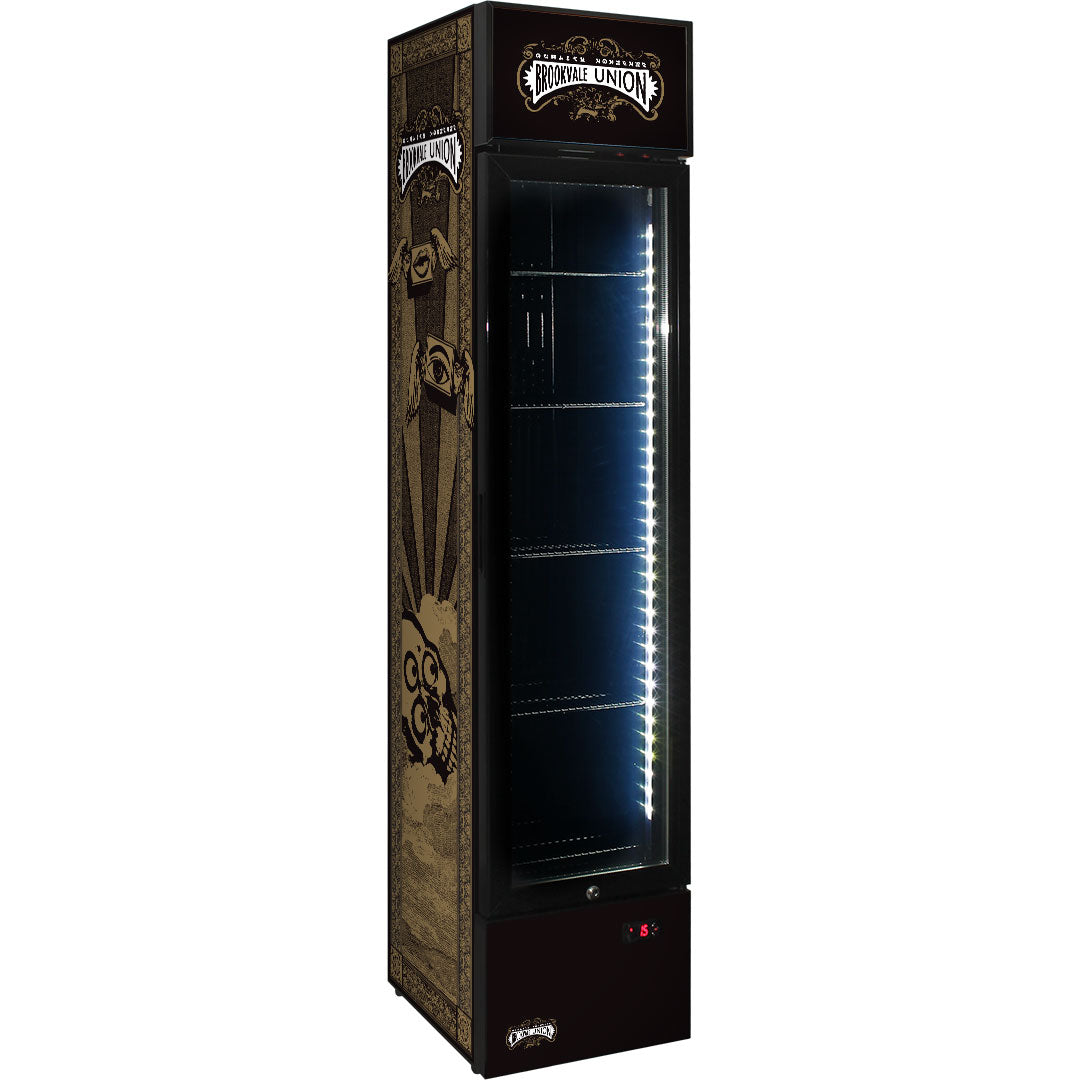

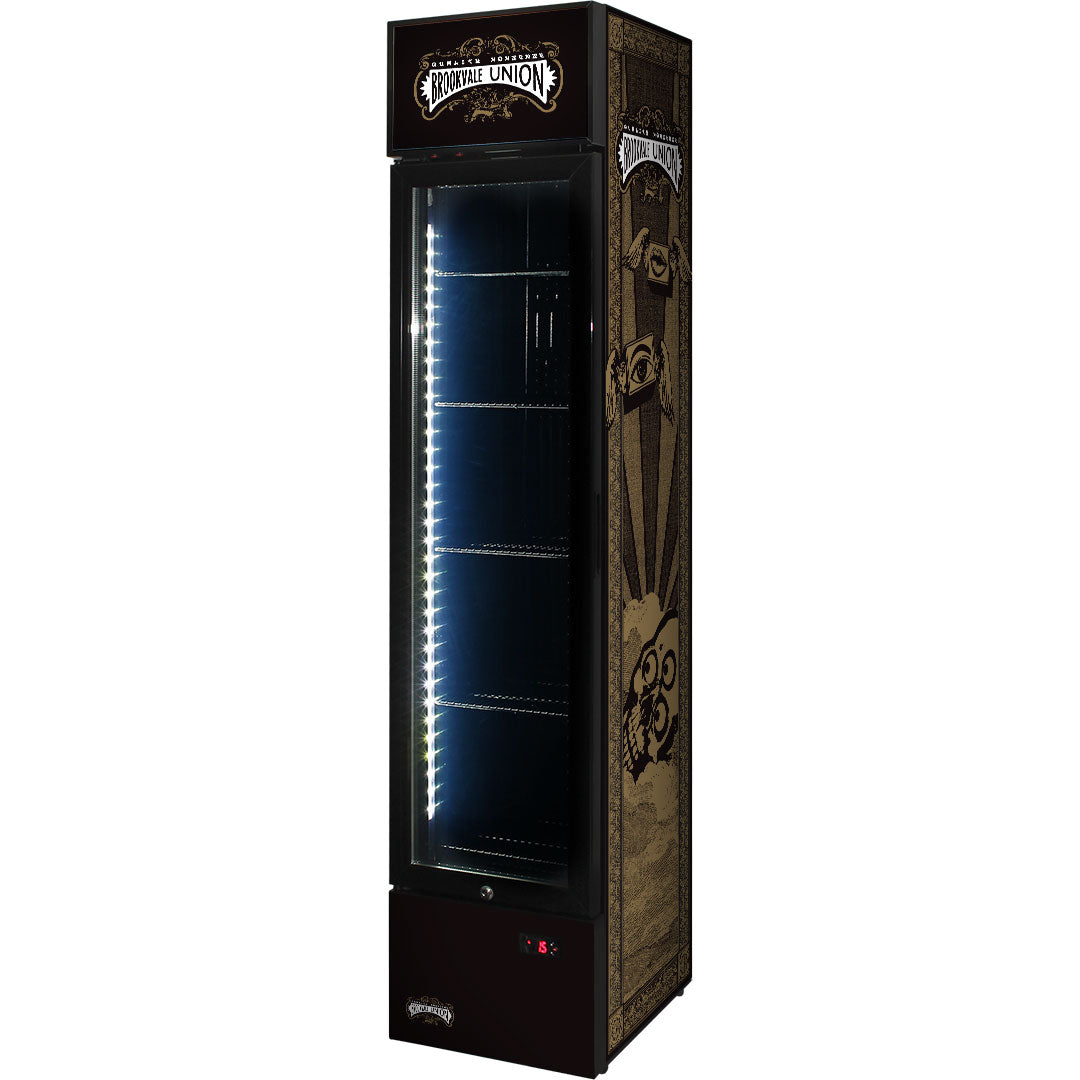

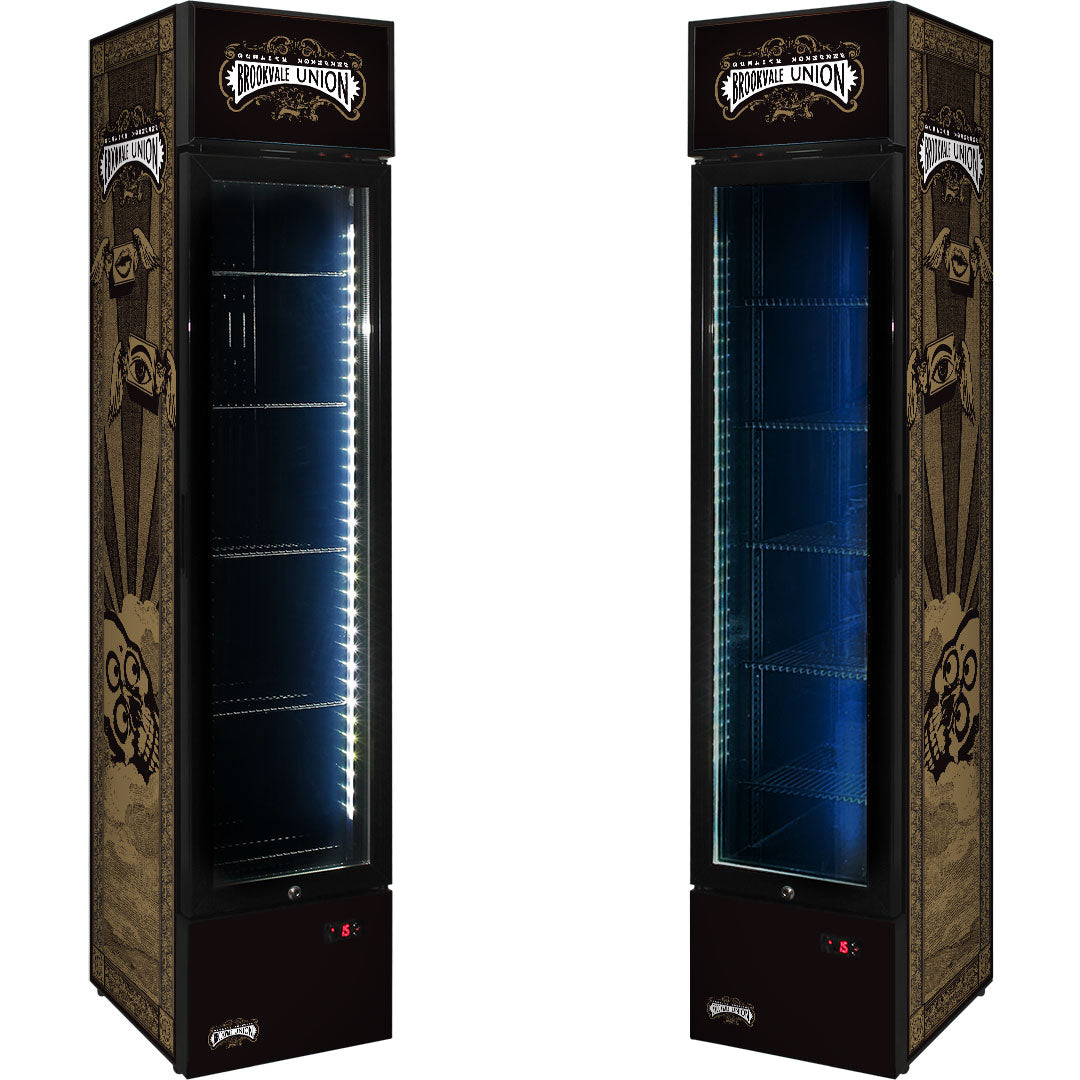

Brookvale Union – Skinny 160L Upright Bar Fridge - SS-P160-BVU
- Size 1880 H × 390 W × 475 D mm
- Capacity 160 L, holds 144 cans
- Model
- SS-P160-BVU
- Capacity
- 160L
- Size
- 1880 H × 390 W × 475 Dmm
- Location
- Indoor and outdoor
- Noise
- 43dB
- Running cost
- About$197/yr
BC46B-BVUVintage Mini · 46LMade to order
$397
SC70-B-BVUGlass · 70LMade to order
$597
SS-P160-BVUSkinny · 160LMade to order
$1,227
SC372B-BVUUpright Black · 370LMade to order
$1,267Overview

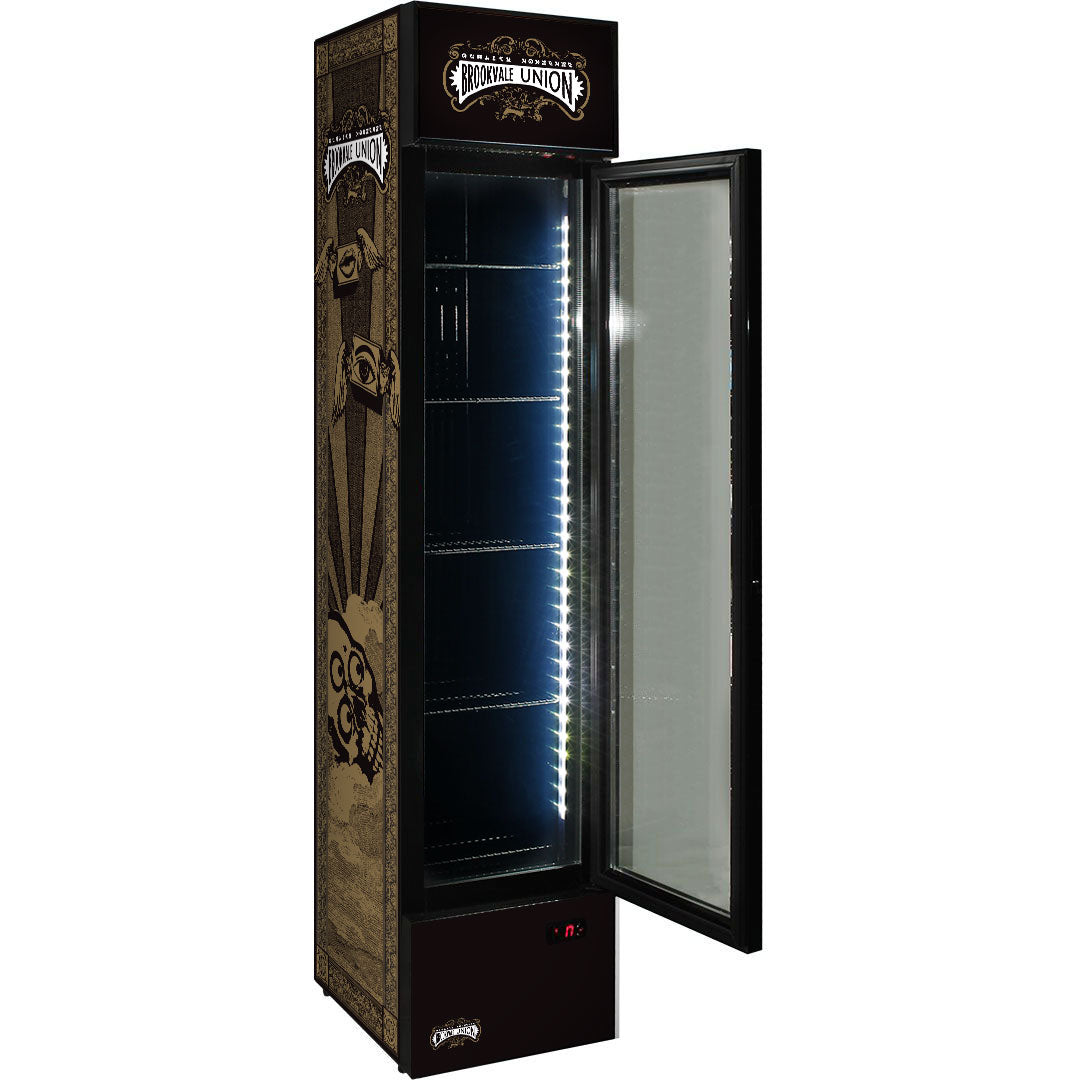

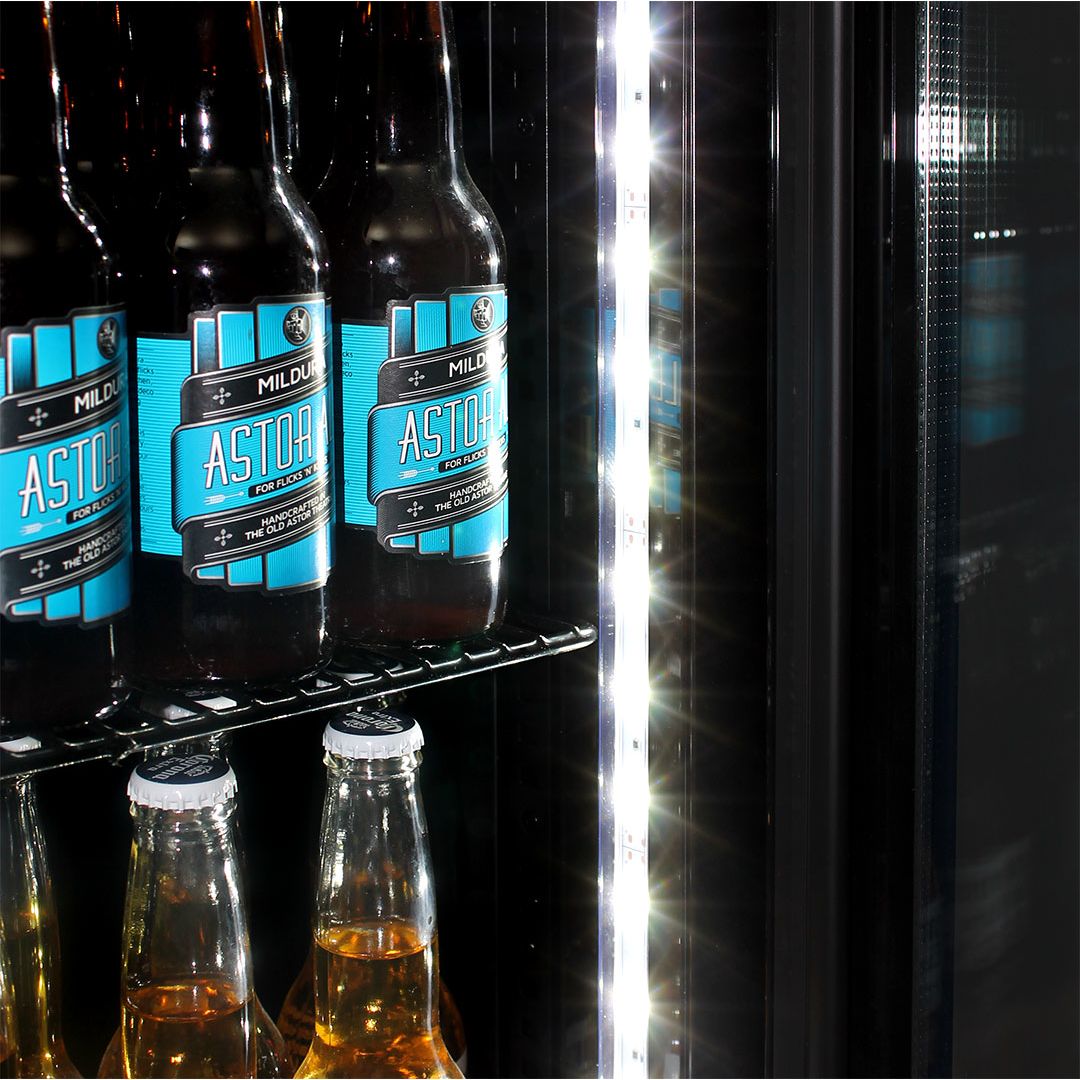

The 160L bar fridge stores up to 144 cans or 64 bottles in a slim 390mm-wide frame, keeping drinks chilled to 0°C even in 32°C heat. Triple glazed LOW E glass prevents condensation for a clear view, while the lockable door and adjustable shelves secure and organise your stock. LED lighting and a Smashed Aluminum interior make contents easy to spot. Quiet German EBM fans and a 9-star energy rating keep running costs to just $196.53 per year. Built for both indoor and outdoor use, this branded fridge features a Carel controller and robust energy-saving components. Tropical rated to 38°C — handles Australian summers without drop-off.
KingCave is an authorised marketing and sales agent for this product. This officially licensed product is supplied, imported, distributed, and fulfilled directly by the brand licensee - Bar Fridges Australia.
Specifications
Capacity
- Volume
- 160 L
- 375ml cans
- 144
- Wine bottles
- 64
- Shelving
- 5 x Shelves W: 294 mm x D: 325mm
Cooling and energy
- Noise
- 43 dB
- Power use
- 2.1 kWh / 24h
- Running cost
- About $197 a year
- Location
- Indoor / Outdoor
- Cooling
- Cools to zero (0°C) in 32°C+ no problems.
- Energy saving features

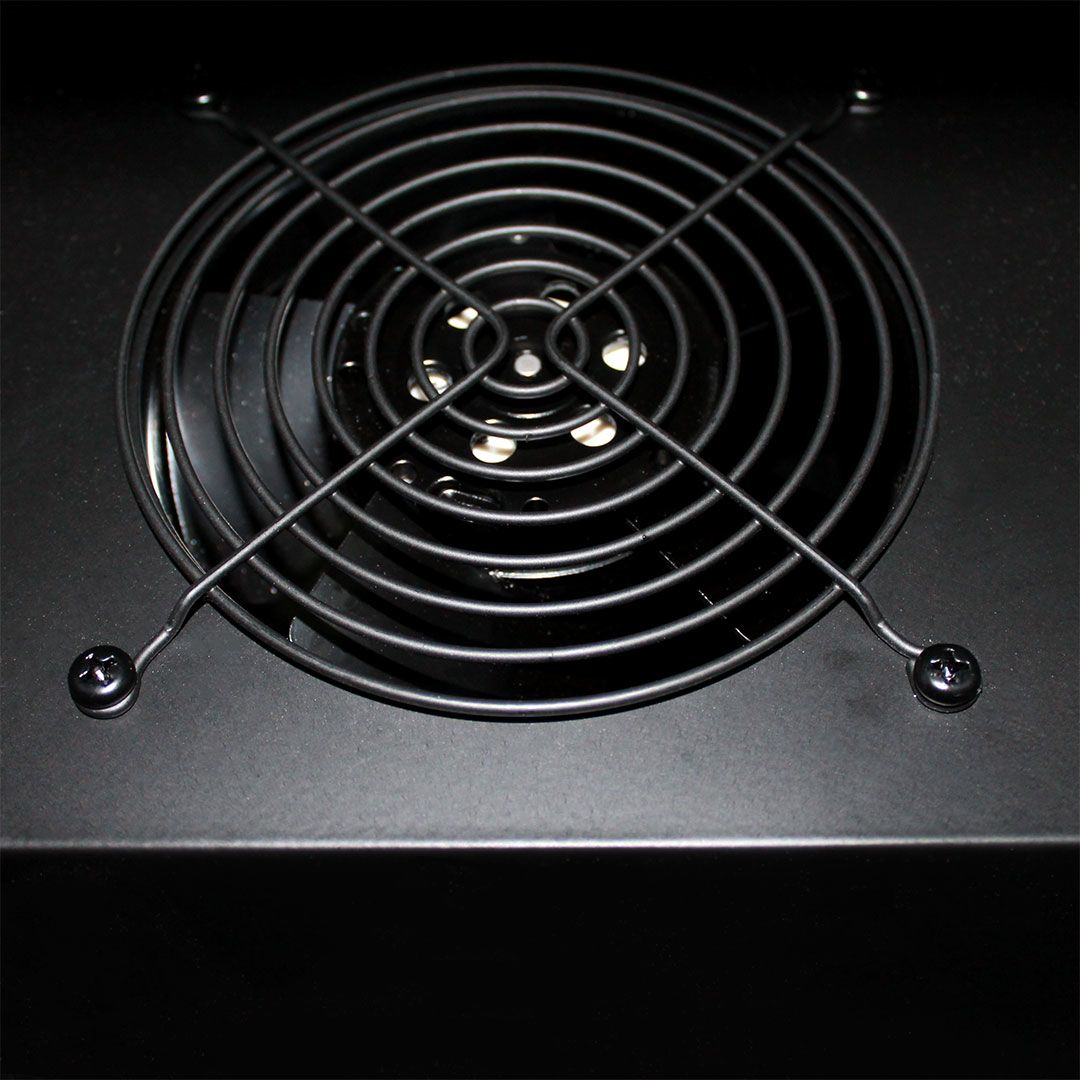

- LOW E glass, German energy saving EBM fans, Energy saving compressor, Electronic Contoller, Cyclopentane foaming,LED lighting,R600 100% ozone safe gas
- Energy star rating
- 9
Build
- Doors
- 1
- Door type
- Glass
- Hinge
- Right
- Finish

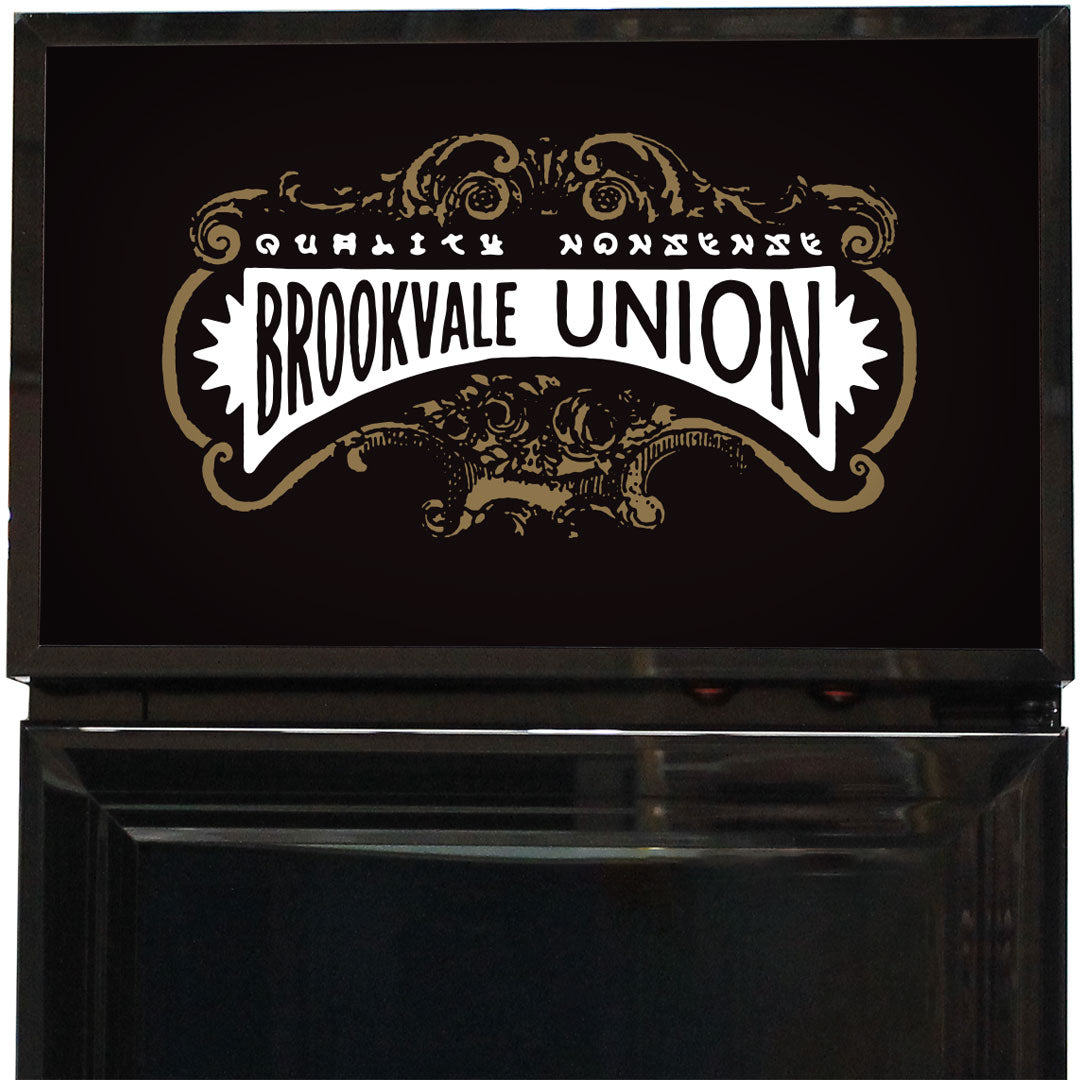

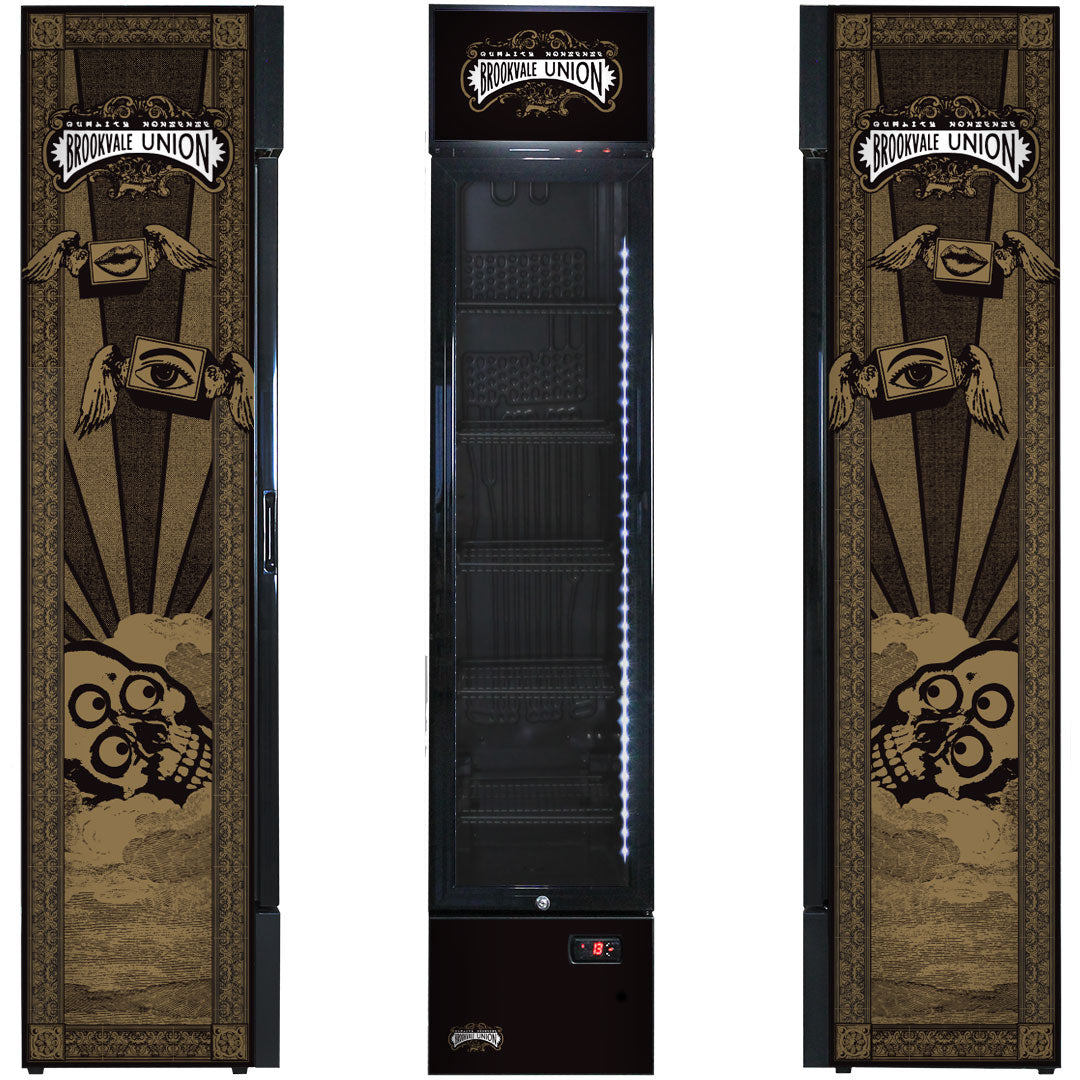

- Branded
- Lockable
- Yes
- Glass door
- Triple glazed tempered LOW E glass
- Brand parts used
- Transfomer From Taiwan, EBM Fans, Carel Controller (Italy)
- Weight
- 60.0 g
Dimensions and approvals
- External H x W x D
- 1880 x 390 x 475 mm
- Internal H x W x D
- 1250 x 300 x 330 mm
- Approvals
- SAA Electrical, EMC (C-Tick)
- Warranty
- 2 years parts and labour
- Model
- SS-P160-BVU
Size and fit
- Ventilation top
- 40 mm
- Ventilation each side
- 40 mm
- Ventilation rear
- 150 mm
Delivery and warranty
Made to order: allow 5 working days to wrap before dispatch. Then express, 3-5 working days to most of Australia, 5-7 to WA, TAS and NT. Insured and tracked to your door.
VIC: free delivery on orders $1,000+
2 years parts and labour, included.
Chat with us or email hello@kingcave.com.au. Fitting out a venue? Ask for a quote.
Card, PayPal or bank transfer.
Downloads
Reviews
How it compares
How the SS-P160-BVU compares
Three similar fridges, side by side. Add any fridge to start your own compare list.
Will it fit?
Measure the gap you have. Each fridge’s listed gap already includes the air it needs.
| Compared with this fridge | You’re viewingBrookvale Union SS-P160-BVU$1,227 | Suggested Schmick SK160W$1,137 | Suggested Rhino SG135L-B-HD$1,232 | Suggested Schmick SK146L-SD$1,165 |
|---|---|---|---|---|
| Price and running costs | ||||
| Price | $1,227 | $1,137 | $1,232 | $1,165 |
| Running cost a year | $197 | $130 | $93 | $106 |
| Power use a day | 2.1 kWh | 1.4 kWh | 1 kWh | 1.1 kWh |
| Energy rating | 9 stars | 10 stars | 9 stars | 9 stars |
| Will it fit | ||||
| Outside sizeWidth x depth x height | 390 x 475 x 1880mm | 405 x 435 x 1895mm | 570 x 580 x 870mm | 550 x 586 x 875mm |
| Gap it needsSize plus ventilation | 470 x 625 x 1920mm | 485 x 585 x 1935mm | 590 x 630 x 880mm | 570 x 636 x 885mm |
| VentilationRear / sides / top | 150 / 40 / 40mm | 100 / 40 / 40mm | 50 / 10 / 10mm | 50 / 10 / 10mm |
| Weight | 60kg | Not listed | 48kg | 43kg |
| Outdoors | ||||
| Cabinet steel | Not listed | 304 stainless | 304 stainless, black | 304 stainless |
| Cools in temps up to | 38°C | Not listed | 38°C | 38°C |
| Where it can go | Indoor and outdoor | Indoor and outdoor | Indoor and outdoor | Indoor and outdoor |
| Heated glassStops fogging in humid air | No | No | Yes | Solid door |
| Low-E glass | Yes | Not listed | Not listed | Not listed |
| What it holds | ||||
| Zones | One | One | One | One |
| Coldest setting | 0°C | Not listed | Not listed | Not listed |
| Volume | 160L | 160L | 143L | 164L |
| Cans (375ml) | 144 | 144 | 140 | 175 |
| Shelves | 5 | Not listed | Not listed | Not listed |
| Inside sizeWidth x depth x height | 300 x 330 x 1250mm | 330 x 325 x 1450mm | 488 x 454 x 715mm | 475 x 440 x 750mm |
| Build | ||||
| Doors | 1 | 1 | 1 | 1 |
| Hinge side | Right | Right | Left | Either side |
| Lockable | Yes | Yes | Yes | Yes |
| Lighting | LED | Not listed | Not listed | Not listed |
| Noise | 43dB | 43dB | 43dB | 43dB |
| Warranty | 2 years | 2 years | 2 years | 2 years |
| Documents | ||||
| Brochure | Open PDF | Open PDF | Not listed | Not listed |
| User manual | Not listed | Open PDF | Open PDF | Not listed |
| Buy | This fridge | View fridge | View fridge | View fridge |
Swipe to see them all
