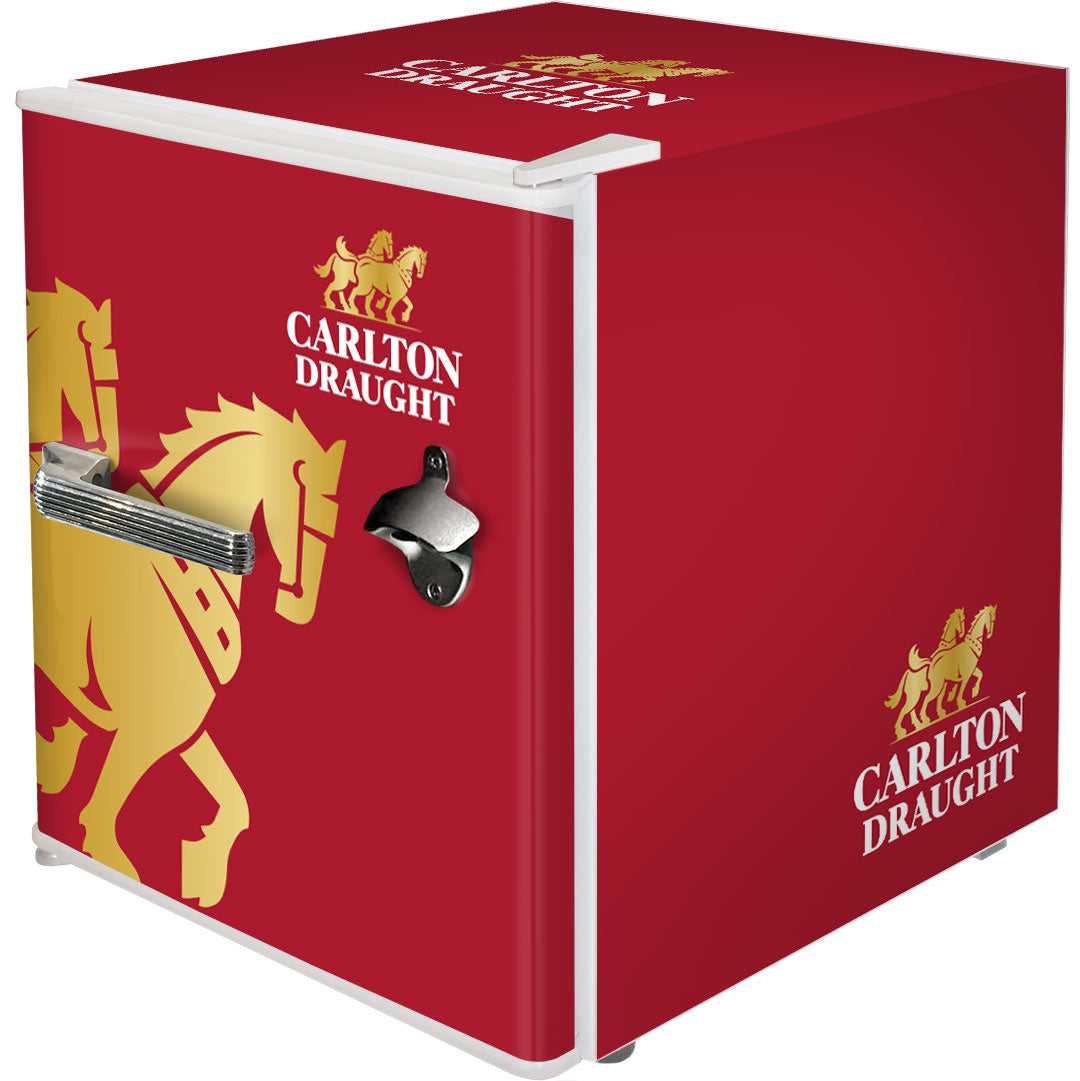

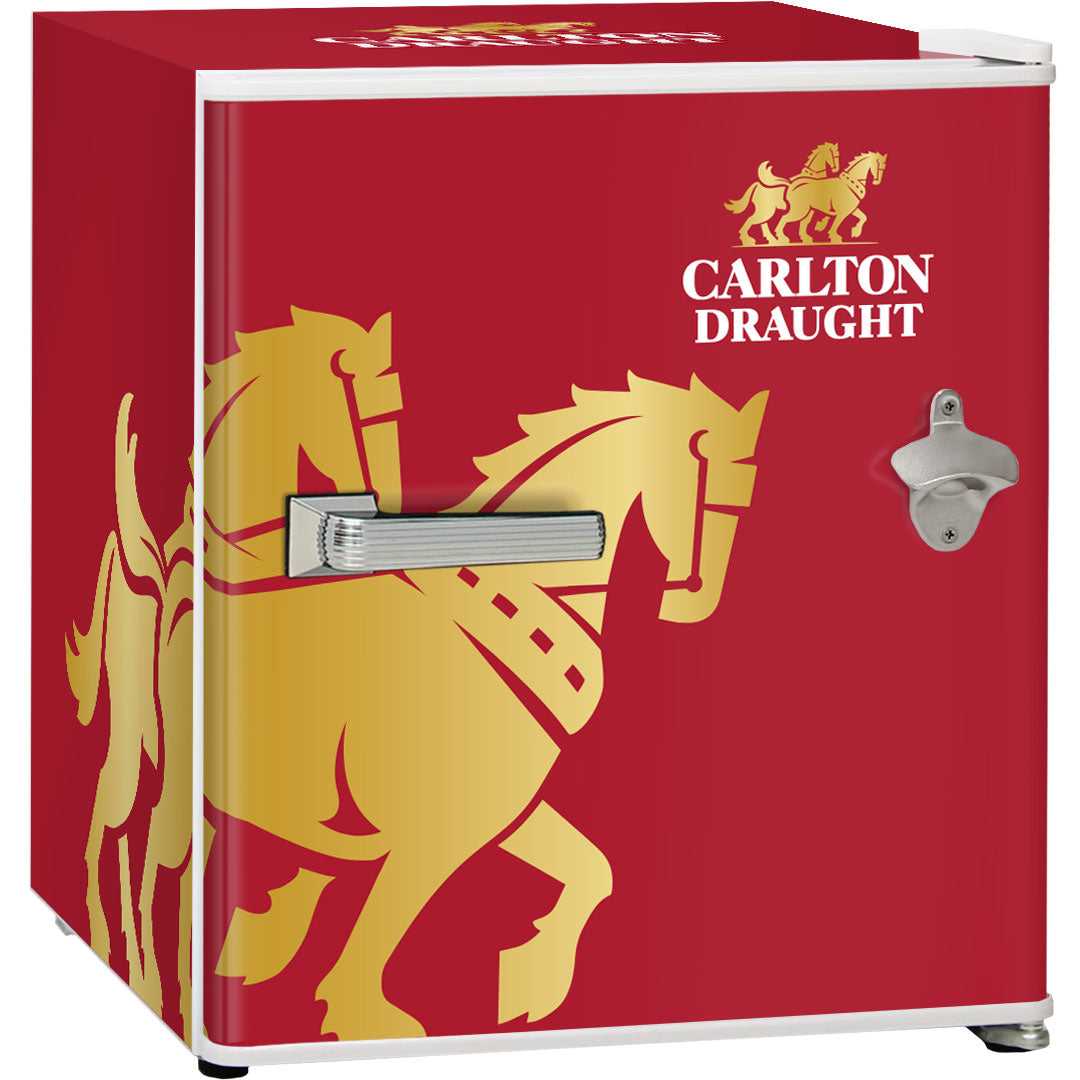

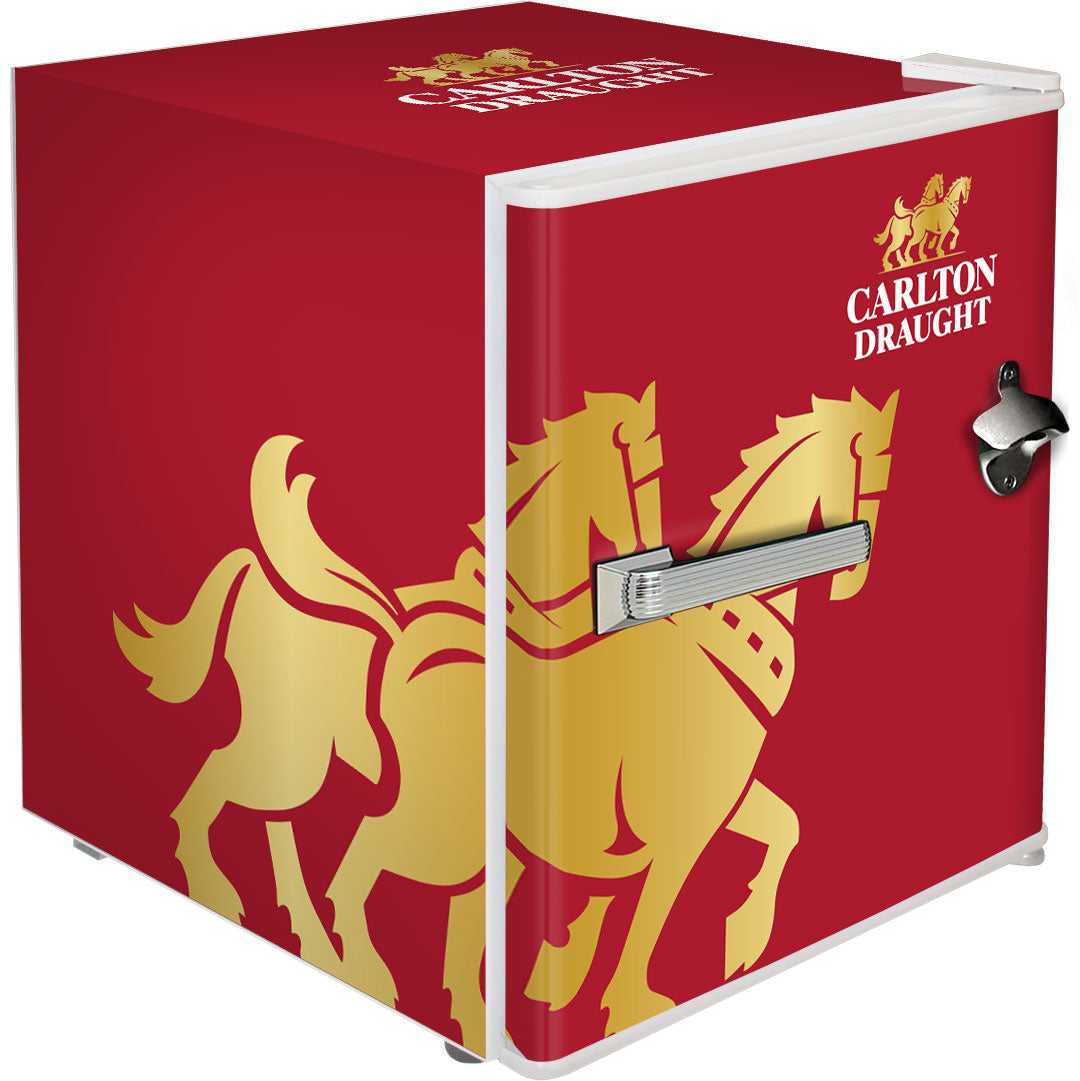

Carlton Draught Retro Mini Bar Fridge – 46L - BC46W-DRAUGHT-V3
- Size 500 H × 430 W × 470 D mm
- Capacity 46 L, holds 38 cans
- Model
- BC46W-DRAUGHT-V3
- Capacity
- 46L
- Size
- 500 H × 430 W × 470 Dmm
- Location
- Indoor
- Noise
- 39dB
- Running cost
- About$20/yr
BC46W-DRAUGHT-V1Retro Mini · V1 · 46LMade to order
$447
BC46W-DRAUGHT-V2Retro Mini · V2 · 46LMade to order
$447
BC46W-DRAUGHT-V3Retro Mini · V3 · 46LMade to order
$417
EC68L-SSH-DRAUGHTTropical · 70LMade to order
$647
SC70-B-DRAUGHT-V3Glass · 70LMade to order
$597
BC70B-BTS-DRAUGHTBluetooth · 70LMade to order
$567
Overview

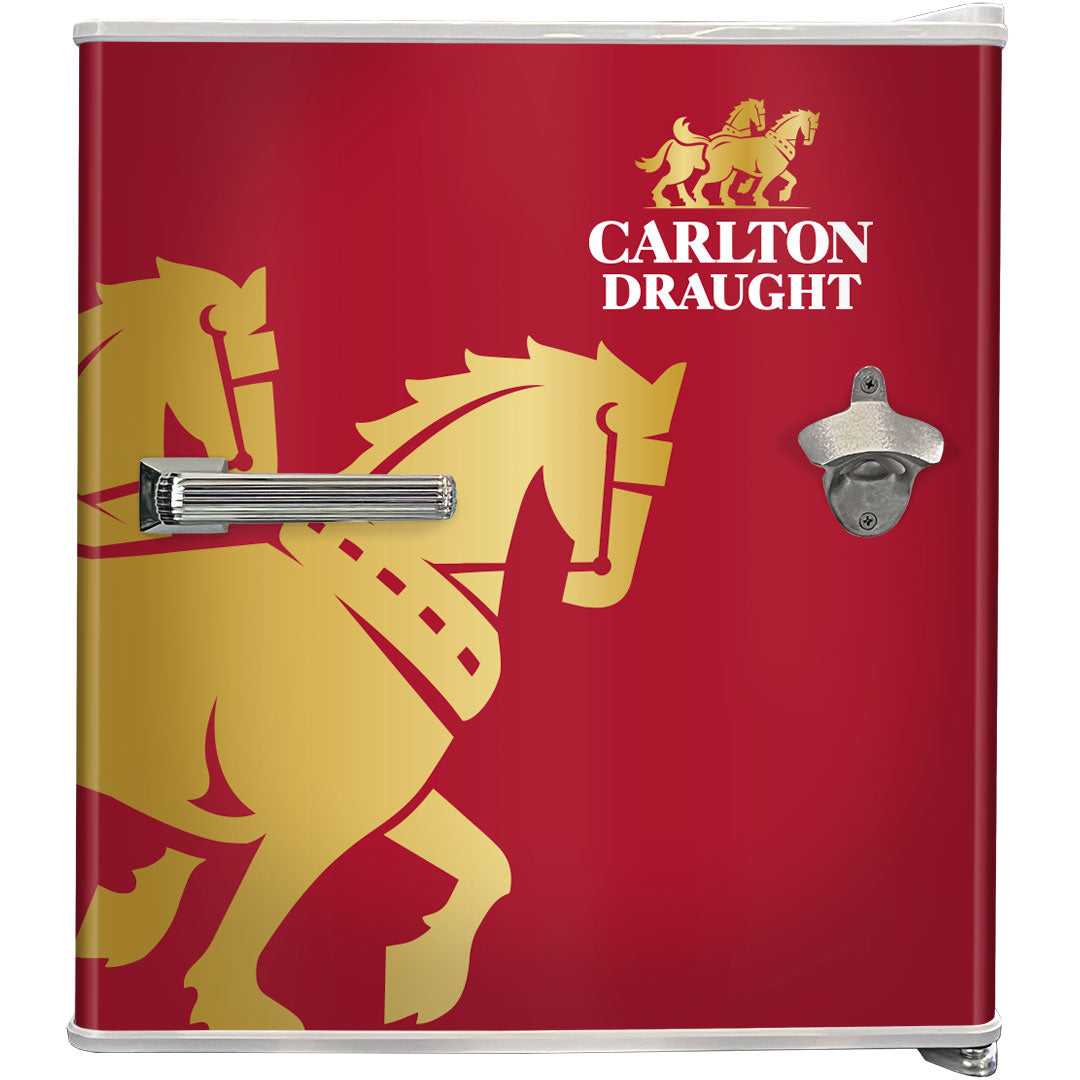

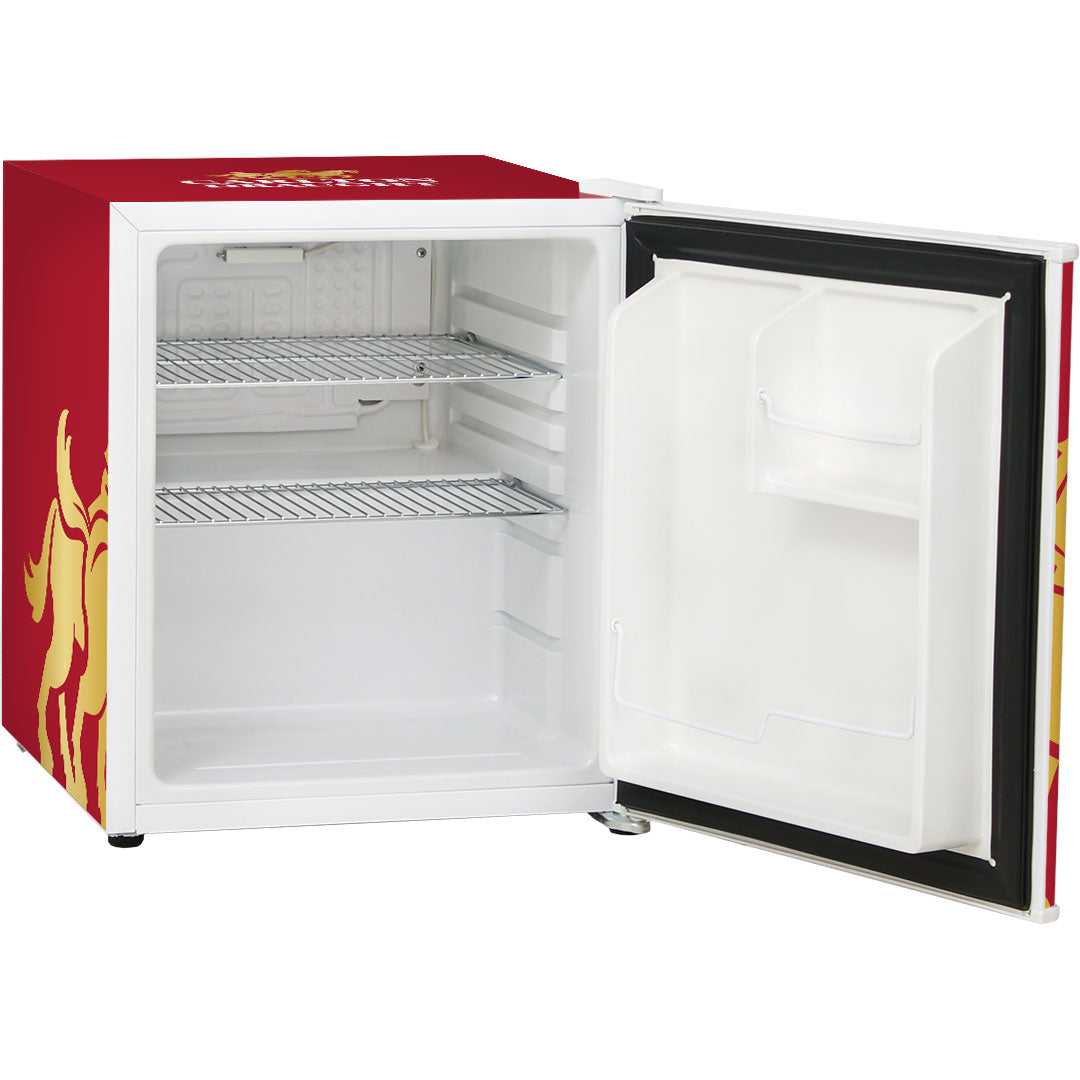

The 46L bar fridge keeps drinks chilled to zero degrees even in 32°C+ conditions, delivering reliable cooling for your space. Five shelves maximise storage flexibility, each measuring 294mm wide by 325mm deep, so you can organise contents with ease. LED lighting ensures contents are always visible, while the solid branded door adds a retro Carlton Draught look. Energy-saving features like LOW E glass, German EBM fans, and an efficient compressor help reduce power use. The fridge uses R600 ozone-safe gas and cyclopentane foaming for a greener footprint. Door opens just 20mm outside its 430mm width, fitting tight spots. Runs at just 39dB — quieter than a conversation.
KingCave is an authorised marketing and sales agent for this product. This officially licensed product is supplied, imported, distributed, and fulfilled directly by the brand licensee - Bar Fridges Australia.
Specifications
Capacity
- Volume
- 46 L
- 375ml cans
- 38
- Shelving

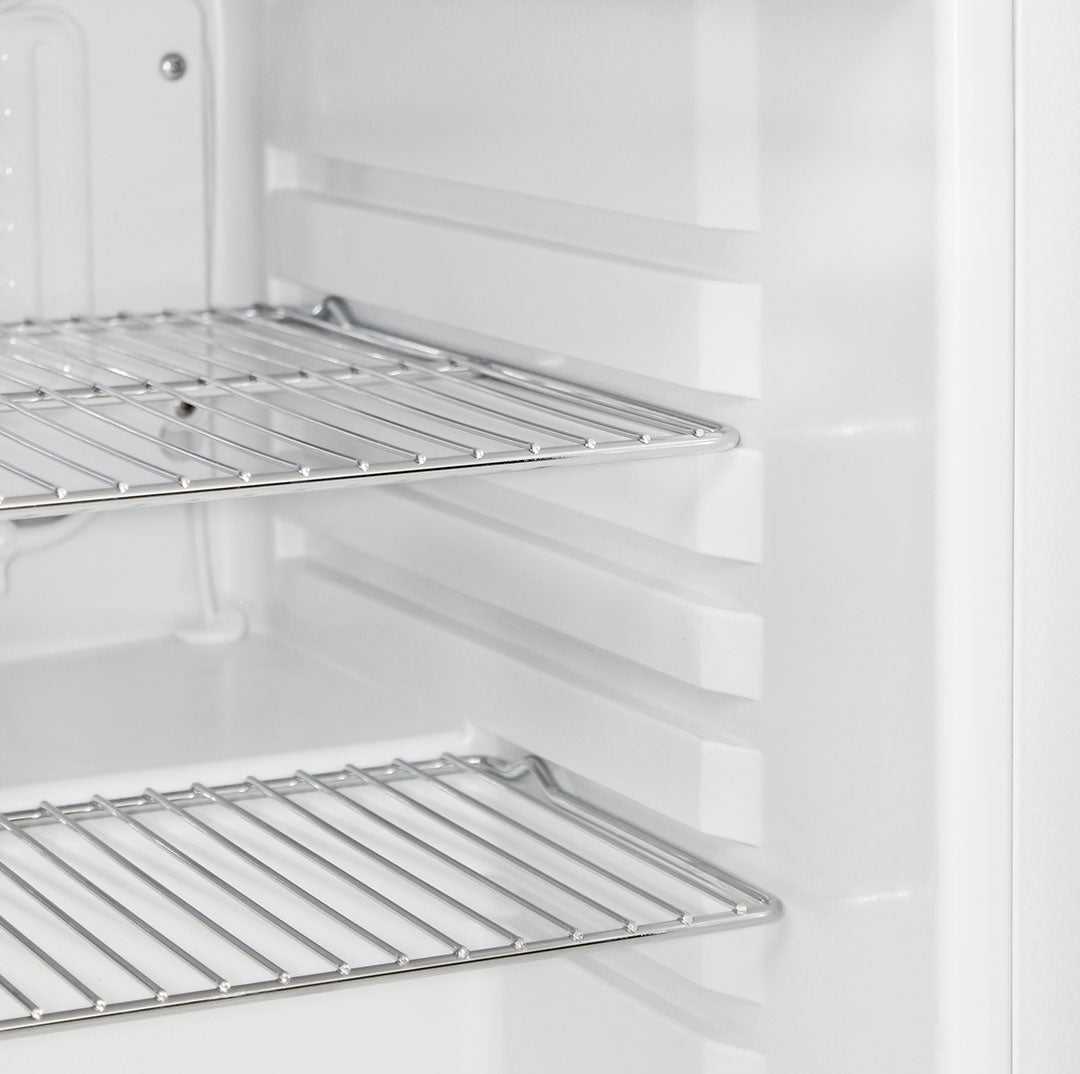

- 5 x Shelves W: 294 mm x D: 325mm
Cooling and energy
- Noise
- 39 dB
- Power use
- 0.21 kWh / 24h
- Running cost
- About $20 a year
- Location
- Indoor
- Cooling
- Cools to zero (0°C) in 32°C+ no problems.
- Energy saving features
- LOW E glass, German energy saving EBM fans, Energy saving compressor, Electronic Contoller, Cyclopentane foaming,LED lighting,R600 100% ozone safe gas
Build
- Doors
- 1
- Door type
- Solid
- Hinge
- Right
- Finish
- Branded
- Weight
- 16.0 kg
Dimensions and approvals
- External H x W x D
- 500 x 430 x 470 mm
- Internal H x W x D
- 415 x 350 x 360 mm
- Other size information
- Door Opens 20mm Outside Diameter
- Warranty
- 1 year parts and labour
- Model
- BC46W-DRAUGHT-V3
Size and fit
- Ventilation top
- 20 mm
- Ventilation each side
- 20 mm
- Ventilation rear
- 100 mm
Delivery and warranty
Made to order: allow 5 working days to wrap before dispatch. Then express, 3-5 working days to most of Australia, 5-7 to WA, TAS and NT. Insured and tracked to your door.
VIC: free delivery on orders $1,000+
1 year parts and labour, included.
Chat with us or email hello@kingcave.com.au. Fitting out a venue? Ask for a quote.
Card, PayPal or bank transfer.
Downloads
Reviews
How it compares
How the BC46W-DRAUGHT-V3 compares
Three similar fridges, side by side. Add any fridge to start your own compare list.
Will it fit?
Measure the gap you have. Each fridge’s listed gap already includes the air it needs.
| Compared with this fridge | You’re viewingCarlton Draught BC46W-DRAUGHT-V3$417 | Suggested Schmick HUS-SC50AB$417 | Suggested Schmick HUS-RND70B$447 | Suggested Schmick HUS-SC70-B$577 |
|---|---|---|---|---|
| Price and running costs | ||||
| Price | $417 | $417 | $447 | $577 |
| Running cost a year | $20 | $123 | $21 | $65 |
| Power use a day | 0.2 kWh | 1.3 kWh | 0.2 kWh | 0.7 kWh |
| Energy rating | 4 stars | 9 stars | 10 stars | 9 stars |
| Will it fit | ||||
| Outside sizeWidth x depth x height | 430 x 470 x 500mm | 435 x 500 x 510mm | 430 x 495 x 680mm | 430 x 500 x 700mm |
| Gap it needsSize plus ventilation | 470 x 570 x 520mm | 475 x 600 x 530mm | 470 x 595 x 700mm | 470 x 600 x 720mm |
| VentilationRear / sides / top | 100 / 20 / 20mm | 100 / 20 / 20mm | 100 / 20 / 20mm | 100 / 20 / 20mm |
| Weight | 16kg | 16kg | 19kg | 28kg |
| Outdoors | ||||
| Cabinet steel | Not listed | 304 stainless, black | 304 stainless, black | 304 stainless, black |
| Cools in temps up to | 32°C | 38°C | 38°C | 38°C |
| Where it can go | Indoor only | Indoor and outdoor | Indoor only | Indoor only |
| Heated glassStops fogging in humid air | Solid door | No | Solid door | No |
| Low-E glass | Not listed | Yes | Not listed | Yes |
| What it holds | ||||
| Zones | One | One | One | One |
| Coldest setting | 0°C | 1°C | 0°C | 1°C |
| Volume | 46L | 50L | 68L | 70L |
| Cans (375ml) | 38 | 38 | 68 | 85 |
| Shelves | 2 | 2 | 3 | 3 |
| Inside sizeWidth x depth x height | 350 x 360 x 415mm | 350 x 370 x 415mm | 335 x 335 x 600mm | 360 x 360 x 595mm |
| Build | ||||
| Doors | 1 | 1 | 1 | 1 |
| Hinge side | Right | Right | Right | Right |
| Lockable | No | Yes | No | Yes |
| Lighting | LED | LED | LED | LED |
| Noise | 39dB | 41dB | 41dB | 43dB |
| Warranty | 1 year | 1 year | 1 year | 2 years |
| Documents | ||||
| Brochure | Open PDF | Open PDF | Open PDF | Open PDF |
| Buy | This fridge | View fridge | View fridge | View fridge |
Swipe to see them all
