Brand: Carlton Draught

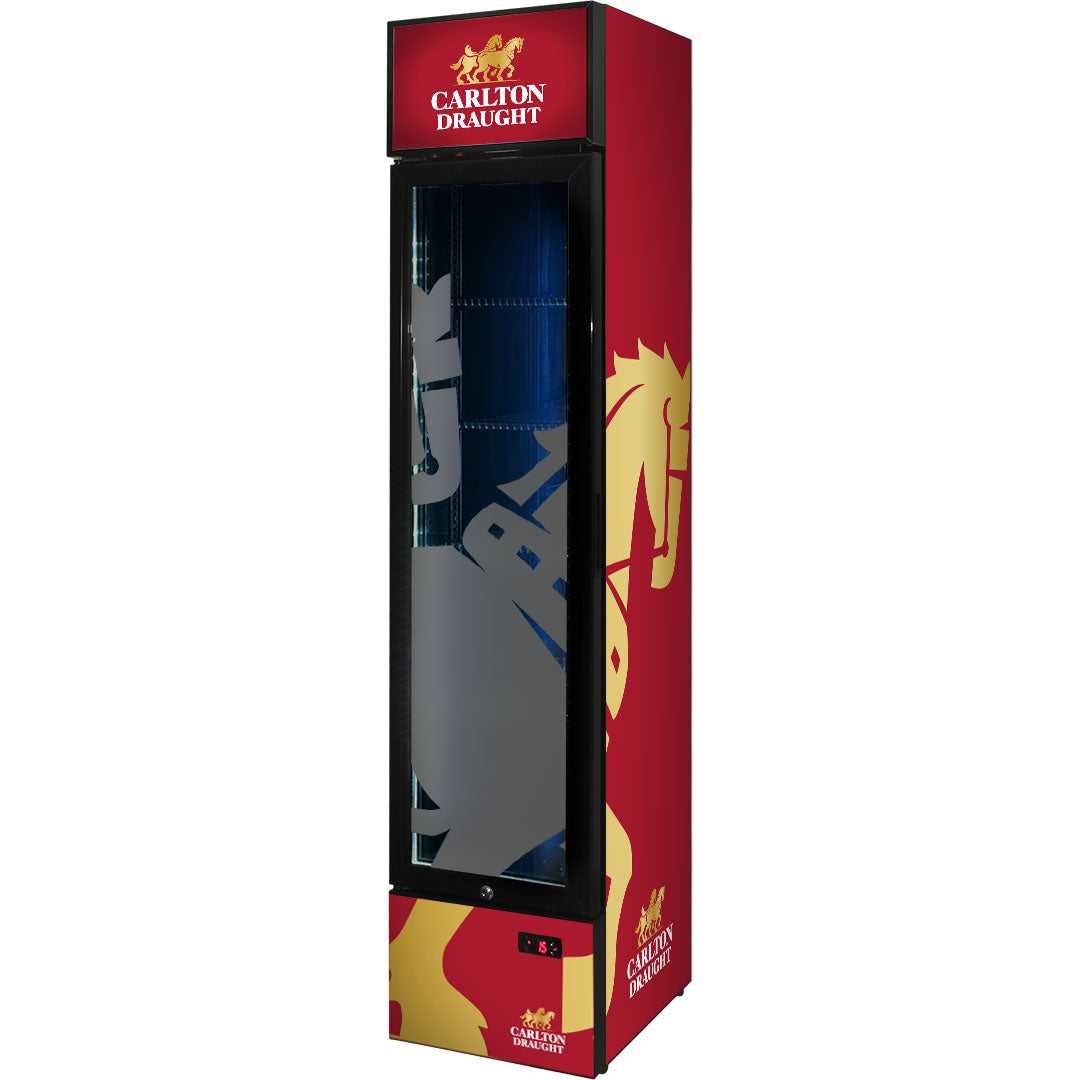

Carlton Draught Skinny Upright Bar Fridge - SS-P160-DRAUGHT-V3

Also available

Skinny | V1 | 160L
SS-P160-DRAUGHT
$1,267.00
In stock
Viewing
Skinny | V3 | 160L
SS-P160-DRAUGHT-v3
$1,227.00
In stock
Upright | 370L
SC372W-CD
$1,267.00
In stock
In Stock
$1,227.00$1,367.00 Save $140.00 (10%)or 4 × $306.75 interest-free with PayPal
+ Free bar mat $79.97 $0.00
Model SS-P160-DRAUGHT-v3
Dimensions 390W × 475D × 1880Hmm
Capacity 160L (144 cans / 64 bottles)
Hinge Right
Door Glass
Running Cost $197/yr est.
In stock - Ready to Ship
Carlton Draught Premium Rubber-Backed Bar Mat RunnerFree with this fridge
Carlton Draught Bar Mat Runner. Goes in your cart with the fridge. $79.97 $0.00
View (0)

About This Fridge

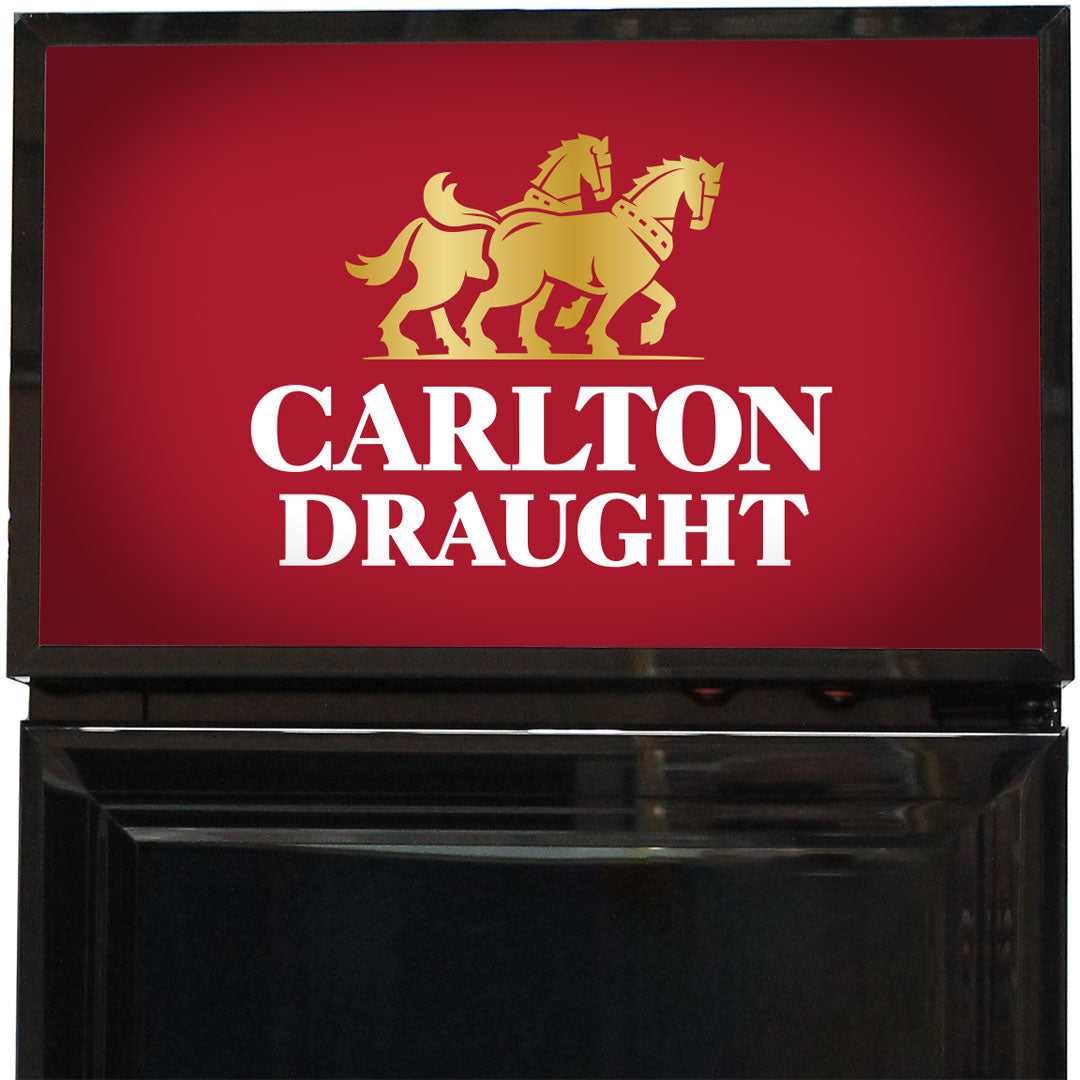

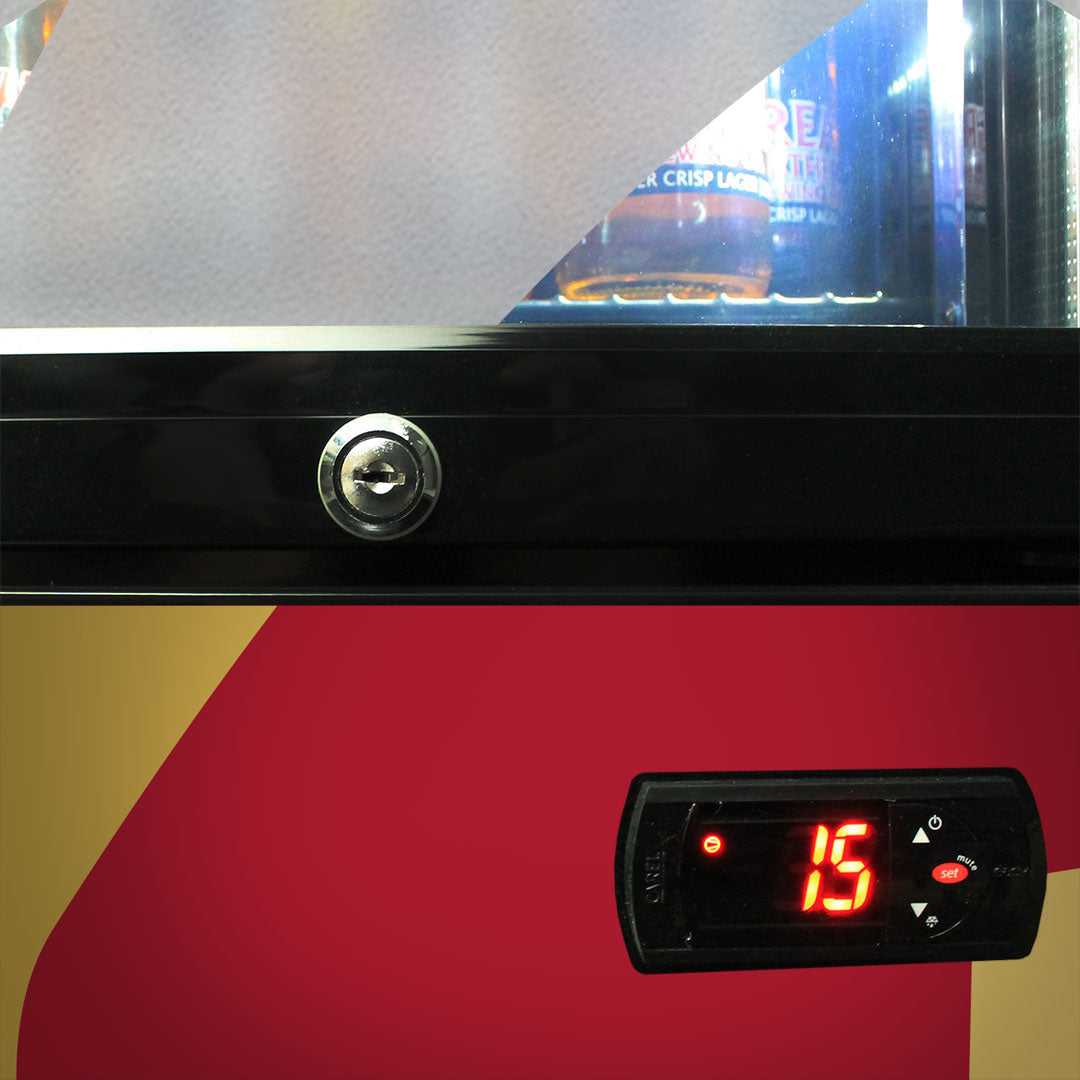

160L bar fridge holds up to 144 cans or 64 bottles, giving you ample chilled storage for busy entertaining. Triple glazed LOW E glass keeps the door clear of condensation, even in humid conditions. Fully adjustable shelves let you customise the interior for any mix of drinks. Lockable door secures your stock when you need peace of mind. Italian Carel controller and quality compressor deliver reliable cooling. German EBM fan ensures quiet, energy-efficient operation. Four adjustable feet provide stability on uneven surfaces. Personalise the light box with your own design for standout branding or gifting. Tropical rated to 38°C — handles Australian summers without drop-off.

energy_saving_features

LOW E glass, German energy saving EBM fans, Energy saving compressor, Electronic Contoller, Cyclopentane foaming,LED lighting,R600 100% ozone safe gas

cooling_description

Cools to zero (0°C) in 32°C+ no problems.

size_info

Door Opens 20mm Outside Diameter

shelving_detail

5 x Shelves W: 294 mm x D: 325mm

brand_info

Schmick is our own flagship brand that is reserved for the best unit we sell that encompass both excellent design and performance

KingCave is an authorised marketing and sales agent for this product. This officially licensed product is supplied, imported, distributed, and fulfilled directly by the brand licensee - Bar Fridges Australia.

01

Dimensions

Model SS-P160-DRAUGHT-v3
W × D × H 390 × 475 × 1880 mm
Internal W × D × H 300 × 330 × 1250 mm
Capacity 160L · 144 cans · 64 bottles
Doors 1
Weight 60.0 kg
02

Performance

Noise 43 dB
Power 2.1 kWh/24h
Running Cost $197/yr est.
Location Indoor / Outdoor
03

Build

Door Type Glass
Hinge Right
Finish Branded
Lockable Yes
Appliance Warranty 2 years parts & labour
04

Documentation

PDF Product Brochure SS-P160-DRAUGHT-v3 Download → PDF Stainless Steel Care Guide Cleaning & maintenance Download → PDF Sunlight & Placement Placement, ambient ratings & IP Download →
05

Ventilation & Installation

Required clearance 150 mm rear
40 mm sides
40 mm top
Minimum cavity 1920 × 470 × 625 mm
H × W × D
Install type Freestanding

Still Choosing

Two ways to narrow it down: see how this one ranks against every fridge we sell, or check it fits the space before you buy.

→
Ranked · Tested · 2026
The Fridge Awards
→
60-second cavity match
Fridge Fit Finder
Officially Licensed · CARLTON DRAUGHT

The full CARLTON DRAUGHT range.

Every officially licensed Carlton Draught piece we carry. One brand, the whole bar.

Carlton Draught Classic 46L Retro Bar Fridge - BC46W-DRAUGHT-V1
Carlton Draught Classic 46L Retro Bar Fridge - BC46W-DRAUGHT-V1
$447.00
Carlton Draught 'Original' Logo Retro Mini Bar Fridge - BC46W-DRAUGHT-V2
Carlton Draught 'Original' Logo Retro Mini Bar Fridge - BC46W-DRAUGHT-V2
$447.00
Carlton Draught Retro Mini Bar Fridge – 46L - BC46W-DRAUGHT-V3
Carlton Draught Retro Mini Bar Fridge – 46L - BC46W-DRAUGHT-V3
$417.00$447.00
Carlton Draught – Glass Door Bar Fridge - EC68L-SSH-DRAUGHT
Carlton Draught – Glass Door Bar Fridge - EC68L-SSH-DRAUGHT
$647.00
Carlton Draught Glass Door Bar Fridge - SC70-B-DRAUGHT-V3
Carlton Draught Glass Door Bar Fridge - SC70-B-DRAUGHT-V3
$597.00
Carlton Draught – Bluetooth Speaker Bar Fridge – 70L - BC70B-BTS-DRAUGHT
Carlton Draught – Bluetooth Speaker Bar Fridge – 70L - BC70B-BTS-DRAUGHT
$567.00$597.00
Carlton Draught Classic 160L Skinny Upright Bar Fridge - SS-P160-DRAUGHT
Carlton Draught Classic 160L Skinny Upright Bar Fridge - SS-P160-DRAUGHT
$1,267.00$1,367.00
Viewing
Carlton Draught Skinny Upright Bar Fridge - SS-P160-DRAUGHT-V3
Carlton Draught Skinny Upright Bar Fridge - SS-P160-DRAUGHT-V3
$1,227.00$1,367.00
Carlton Draught Glass Door Bar Fridge – Quiet – 370L - SC372W-DRAUGHT
Carlton Draught Glass Door Bar Fridge – Quiet – 370L - SC372W-DRAUGHT
$1,267.00$1,397.00
Compare all 13 Carlton Draught bar fridges side by side

How the SS-P160-DRAUGHT-v3 compares

Three similar fridges, side by side. Add any fridge to start your own compare list.

Will it fit?

Measure the gap you have. Each fridge’s listed gap already includes the air it needs.

Carlton Draught Skinny Upright Bar Fridge - SS-P160-DRAUGHT-V3 compared with similar fridges
Compared with this fridgeYou’re viewingCarlton Draught SS-P160-DRAUGHT-v3$1,227 $1,367Save $140SuggestedSchmick SK160W$1,137 $1,267Save $130SuggestedSchmick SK220L-B-HD$1,156 $1,377Save $221SuggestedSchmick SK146R-SD$1,260 $1,327Save $67
Price and running costs
Price$1,227$1,137$1,156$1,260
Running cost a year$197$130$247$184
Power use a day2.1 kWh1.4 kWh2.6 kWh2 kWh
Energy rating9 stars10 stars5 stars7 stars
Will it fit
Outside sizeWidth x depth x height390 x 475 x 1880mm405 x 435 x 1895mm595 x 586 x 1220mm550 x 586 x 875mm
Gap it needsSize plus air gap470 x 625 x 1920mm485 x 585 x 1935mm675 x 740 x 1260mm570 x 636 x 885mm
Air gapRear / sides / top150 / 40 / 40mm100 / 40 / 40mm150 / 40 / 40mm50 / 10 / 10mm
Weight60kgNot listed65kg43kg
Outdoors
Cabinet steelNot listed304 stainless304 stainless, black304 stainless
Cools in temps up to38°CNot listed38°C38°C
Where it can goIndoor and outdoorIndoor and outdoorIndoor and outdoorIndoor and outdoor
Heated glassStops fogging in humid airNoNoYesSolid door
Low-E glassNot listedNot listedNot listedYes
What it holds
ZonesOneOneOneOne
Coldest setting0°CNot listed1°C0°C
Volume160L160L219L164L
Cans (375ml)144144245175
Shelves5Not listed43
Inside sizeWidth x depth x height300 x 330 x 1250mm330 x 325 x 1450mm520 x 440 x 820mm475 x 440 x 750mm
Build
Doors1111
Hinge sideRightRightLeftRight
LockableYesYesYesYes
LightingLEDNot listedLEDLED
Noise43dB43dB43dB43dB
Warranty2 years2 years2 years2 years
